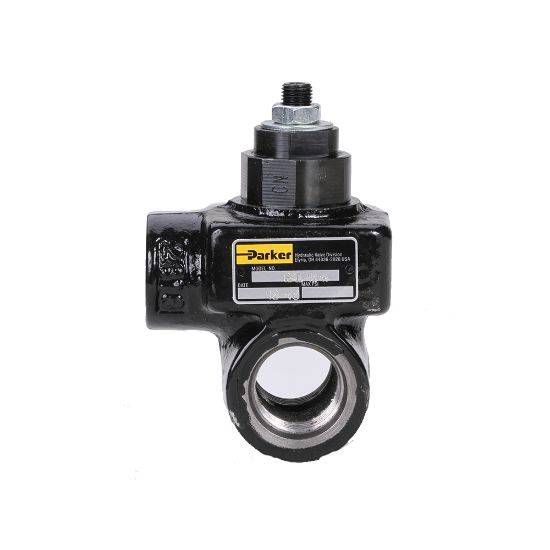

In-Line Mounted Pilot Operated Relief Valve - RPJL Series - RPJL-75-A

Name: In-Line Mounted Pilot Operated Relief Valve - RPJL Series - RPJL-75-A
SKU: RPJL-75-A
Availability: OutOfStock

Parker’s RPJL In-line Relief valve rated at 25 GPM is designed for limiting the maximum pressure which can be applied to the portion of the hydraulic circuit where it is installed.

Availability:

Backordered

SKU: RPJL-75-A

Qty:

Products specifications

Attribute name	Attribute value
Connection Type	NPT	Maximum Flow Rate	25 Gal/min
Maximum Operating Pressure	2000 psi	Weight	3 lb
For Fluid Type	Hydraulic Oil	Actuation Type	Adjustable
Minimum Operating Temperature	-40 °F	Division	Hydraulic Valve Systems Division
Mounting Type	In-Line	Maximum Operating Temperature	+200 °F
Body Material	High Strength Cast Iron	Connection Size	3/4"
Pressure Control Range	Adjustable	Adjustment Mechanism	Adjustable
Seal Material	Nitrile	Product Style	In-Line Pilot Mounted Operated Relief Valve
Port Size	3/4" NPT

Product resources

Literature and Reference Materials
