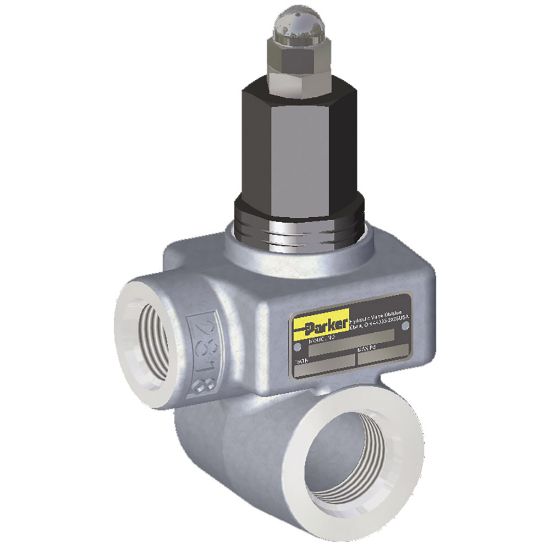

*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.

In-Line Mounted Differential Poppet Relief Valve – WJL Series - WJL-75-3000

Name: In-Line Mounted Differential Poppet Relief Valve – WJL Series - WJL-75-3000
SKU: WJL-75-3000
Availability: OutOfStock

Parker’s WJL In-line Relief Valve rated at 25 GPM is designed for limiting the maximum pressure which can be applied to the portion of the hydraulic circuit where it is installed.

Availability:

Backordered

SKU: WJL-75-3000

Qty:

Products specifications

Attribute name	Attribute value
Minimum Operating Temperature	-40 °F	For Fluid Type	Hydraulic Oil
Body Material	High Strength Cast Iron	Maximum Operating Temperature	+200 °F
Product Style	In-Line Mounted Differential	Division	Hydraulic Valve Systems Division
Actuation Type	Hydraulic Pressure	Mounting Type	In-Line
Connection Size	3/4"	Pressure Control Range	2000-3000 psi
Seal Material	Nitrile	Connection Type	NPT
Maximum Flow Rate	25 Gal/min	Weight	3 lb
Maximum Operating Pressure	2000 psi
Adjustment Type	Shim Adjustable	Pressure Relief Setting (psi)	2000-3000
Port Size	3/4" NPT
