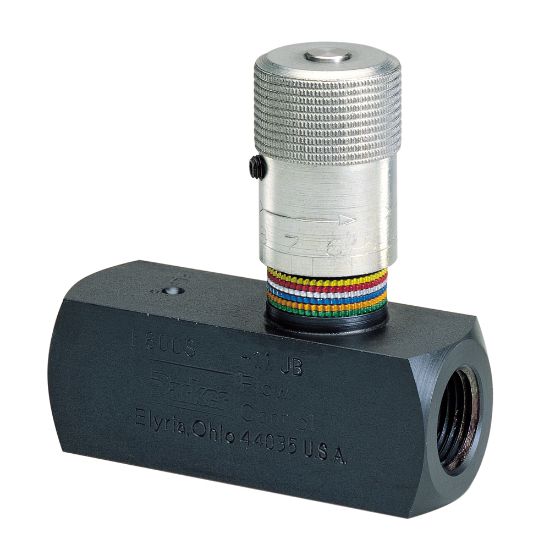

In-line Flow Control Valve – F Series - 9F1600SF

Name: In-line Flow Control Valve – F Series - 9F1600SF
SKU: 9F1600SF
Availability: OutOfStock

The Colorflow F series of hydraulic flow control valves permits free flow in one direction and metered flow in the reverse direction. This flow control valve is used in air and oil applications.

Availability:

Backordered

SKU: 9F1600SF

Qty:

Products specifications

Attribute name	Attribute value
Minimum Operating Temperature	-40 °C	Body Material	Steel
Flow Rate	n/a	Actuation Type	Manual
Connection Size	1 inch	Seal Material	Nitrile
Maximum Operating Temperature	250 °F	Maximum Operating Pressure	500 psi
Division	Hydraulic Valve Systems Division	Media	Oil
Connection Type	Female to Female	Brand	Colorflow
Function	Flow Control	Configuration	Inline
Maximum Flow Rate	151 L/min
Body Material	Steel	Connection Type	BSPP
Seal Material	Nitrile	Cracking Pressure (psi)	5
Function	Flow Control	Configuration	InLine
Actuation Type	Manual	Maximum Operating Temperature	+250
Minimum Operating Temperature	-40	Needle	Standard
Poppet Style	Metal	Maximum Operating Pressure (psi)	3000
Connection Size	1"	Knob Option	Finger Screw
Maximum Flow Rate	40
