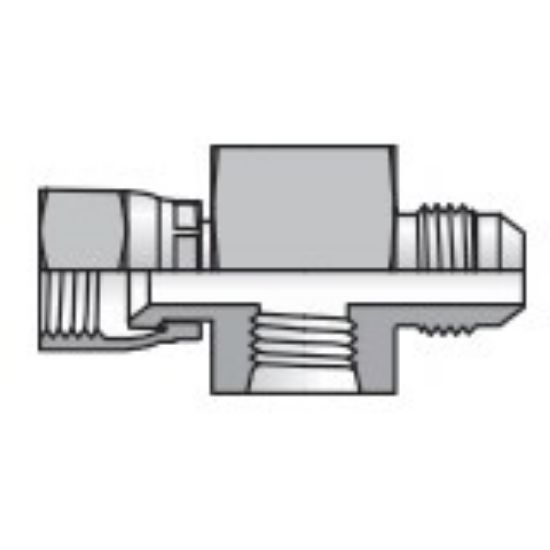

In-Line Diagnostic Fittings and Adapters - 20-4 XHX6G5TP-S

Parker's Diagnostic products are designed to be installed to a hose assembly or tube line without the need to displace the port adapter, working in conjunction with electronic diagnostic products and mechanical pressure and temperature sensing equipment.

Availability:	13 in stock
Partner Available:	14 in stock

SKU: 20-4 XHX6G5TP-S

$111.54

Products specifications

Attribute name	Attribute value
Division	Tube Fittings Division	Dimensional Weight	0.31160071942446044 lb
Maximum Dynamic Pressure	4500 psi	Connection Type	In-Line Gauge Port Tee
Maximum Static Pressure	6000 psi
O-Ring Material	na	Body Material	Steel
Connection 2 Thread Size (mm)	na	Connection 2 Tube O.D. (mm)	na
Connection 2 Thread Size (inch)	na	Connection 1 Tube O.D. (mm)	na
Connection 2 Style	Female 37° Flare Swivel	Connection 1 Style	Male 37° Flare
Connection 3 Style	Female SAE-ORB Port	Connection 3 Thread Size (inch)	7/16-20
Connection 3 Thread Size (mm)	na	Connection 1 Tube O.D. (inch)	1 1/4
Connection 2 Tube O.D. (inch)	1 1/4

Product resources

Compliance, Certifications & Safety

Lloyds Register Zertifikat LR2382868TA-Triple-Lok
