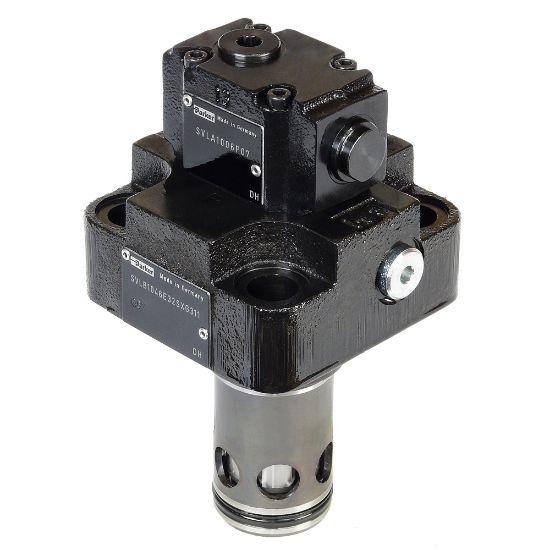

Hydraulically Pilot Operated Check Valve - Series SVLB - SVLB1086E25N

Name: Hydraulically Pilot Operated Check Valve - Series SVLB - SVLB1086E25N
SKU: SVLB1086E25N
Availability: OutOfStock

The hydraulically pilot operated check valve series SVLB is based on Parker's comprehensive modular DIN cartridge system. It is mainly used to shut-off the cylinder.

Availability:

Backordered

SKU: SVLB1086E25N

Qty:

Products specifications

Attribute name	Attribute value
Connection Type	n/a	Cracking Pressure	n/a
Configuration	n/a	Flow Direction	A to B
Connection Size	n/a	Body Material	Cast Iron
Mounting Type	Slip-in Cartridge	Division	Industrial Systems Division Europe
Maximum Flow Rate	450 L/min	Minimum Operating Temperature	-20 °C
Maximum Operating Pressure	350 bar	Mounting Position	Unrestricted
Maximum Operating Temperature	60 °C	Seal Material	NBR
Product Series	Check Valve	Weight	3.2 kg
Operation Type	Pilot	Actuation Type	Hydraulically
Port Connection	NG25	Seal Material	NBR
Spring Closing Pressure	0.5 bar	Poppet Style	08, with damping nose
