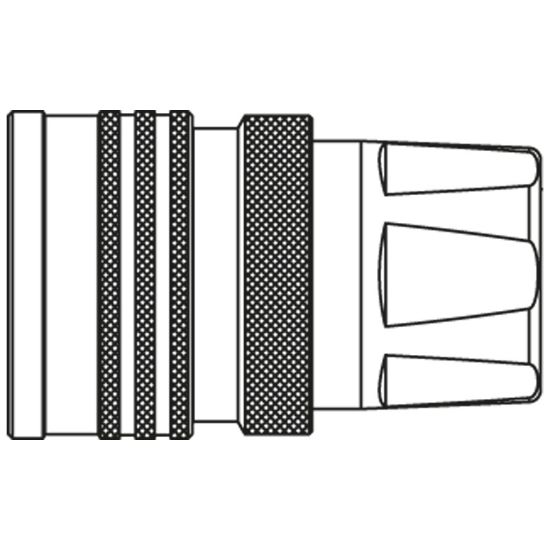

Hydraulic Quick Coupling with Parker Profile - Series H - H10011 V

Name: Hydraulic Quick Coupling with Parker Profile - Series H - H10011 V
SKU: H10011 V
Availability: OutOfStock

Quick coupling system with body sizes 1/2" up to 1" and Parker Profile for medium pressure applications up to 320 bar.

Availability:

Backordered

SKU: H10011 V

Qty:

Products specifications

Attribute name	Attribute value
Outside Diameter	62 mm	Connection Type	Female Thread
Hex Size	45 mm	Operating Pressure	280 bar
Division	High Pressure Connectors Europe Division	Minimum Operating Temperature	-25 °C
Connection Thread Size	1 inch	Materials of Construction	Brass / Steel
Length	88 mm	Maximum Operating Temperature	200 °C
Seal Material	FKM	Version	Pressure Eliminator
Type	Coupling	Body Size (inch)	1

Product resources

Compliance, Certifications & Safety

Safety instructions Quick Couplings

Literature and Reference Materials

Hydraulic Quick Couplings Catalogue--CAT/3800-HYD/UK
Catalog 3800 Quick Coupling Products
