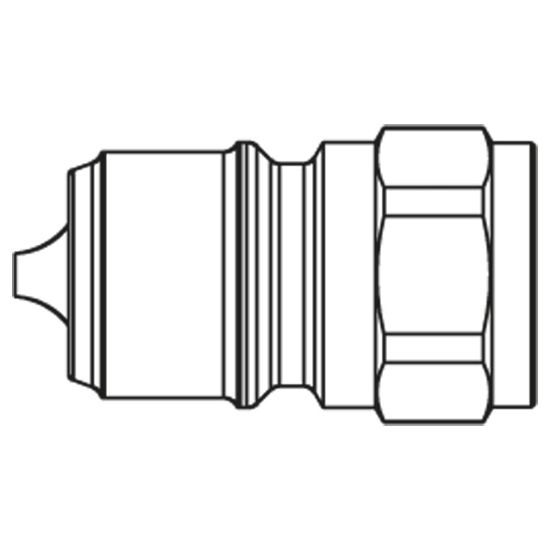

Hydraulic quick coupling - Parker Profile - T series - 7521 S

Name: Hydraulic quick coupling - Parker Profile - T series - 7521 S
SKU: 7521 S
Availability: OutOfStock

Parker Hydraulics quick coupling system with Parker Tema Profile and body size 1/8" up to 2" for applications up to 450 bar.

Availability:

Backordered

SKU: 7521 S

Qty:

Products specifications

Attribute name	Attribute value
Maximum Operating Temperature	100 °C	Minimum Operating Temperature	-30 °C
Connection Thread Size	3/4 inch	Connection Type	Female Thread
Division	High Pressure Connectors Europe Division
Valving	with	Outside Diameter (mm)	39
Seal Material	NBR	Body Size (inch)	3/4
External Hex (mm)	36	Material	Brass / Steel
Length (mm)	53	Working Pressure Connected (bar)	300
Type	Super Nipple	Version	Pressure Eliminator

California Residents: Prop-65 Warning

Product resources

Literature and Reference Materials

Hydraulic Quick Couplings Catalogue--CAT/3800-HYD/UK
Catalog 3800 Quick Coupling Products

Compliance, Certifications & Safety

Safety instructions Quick Couplings
