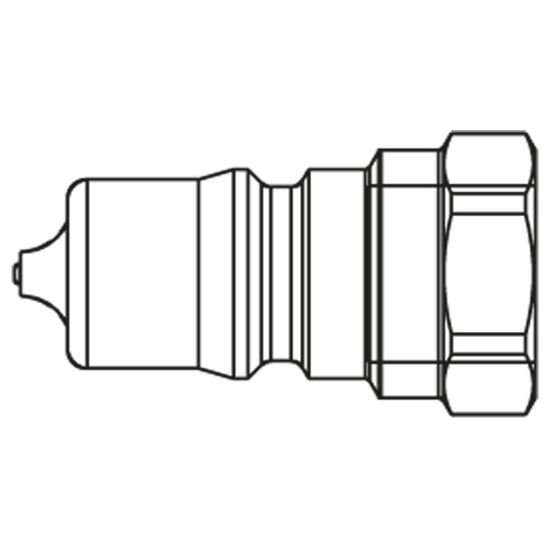

Hydraulic quick coupling - ISO B Profile - IB series - IB10021

Name: Hydraulic quick coupling - ISO B Profile - IB series - IB10021
SKU: IB10021
Availability: OutOfStock

Parker quick coupling system with ISO 7241-1 series B profile and body size 1/4" up to 1" for applications up to 400 bar.

Availability:

Backordered

SKU: IB10021

Qty:

Products specifications

Attribute name	Attribute value
Body Size	1 inch	Materials of Construction	Steel Hardened
Division	High Pressure Connectors Europe Division	Connection Type	Female Thread
Hex Size	42 mm	Length	70 mm
Operating Pressure	300 bar	Maximum Operating Temperature	100 °C
Outside Diameter	46 mm	Minimum Operating Temperature	-30 °C
Version	with Pressure Eliminator	Seal Material	NBR
Valving	with	Type	Plug
Connection Thread Size (inch)	1

Product resources

Literature and Reference Materials

Hydraulic Quick Couplings Catalogue--CAT/3800-HYD/UK
Catalog 3800 Quick Coupling Products

Compliance, Certifications & Safety

Safety instructions Quick Couplings
