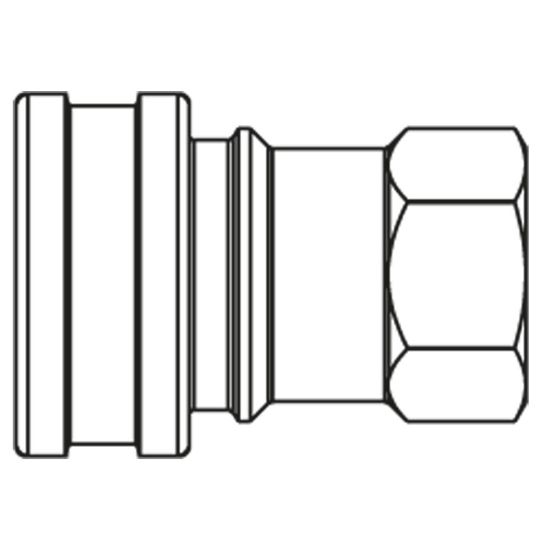

*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.

Hydraulic quick coupling - ISO B Profile - IB series - IB10011 H

Name: Hydraulic quick coupling - ISO B Profile - IB series - IB10011 H
SKU: IB10011 H
Availability: OutOfStock

Parker quick coupling system with ISO 7241-1 series B profile and body size 1/4" up to 1" for applications up to 400 bar.

Availability:

Backordered

SKU: IB10011 H

Qty:

Products specifications

Attribute name	Attribute value
Hex Size	50 mm	Division	High Pressure Connectors Europe Division
Materials of Construction	Steel Zinc Plated, Passivated	Maximum Operating Temperature	100 °C
Outside Diameter	66 mm	Operating Pressure	300 bar
Length	94 mm	Minimum Operating Temperature	-30 °C
Body Size	1 inch	Connection Type	Female Thread
Seal Material	NBR	Connection Thread Size (inch)	1
Valving	with	Type	Coupling with Heavy Duty Sleeve
Version	with Pressure Eliminator

Product resources

Literature and Reference Materials

Hydraulic Quick Couplings Catalogue--CAT/3800-HYD/UK
Catalog 3800 Quick Coupling Products

Compliance, Certifications & Safety

Safety instructions Quick Couplings
