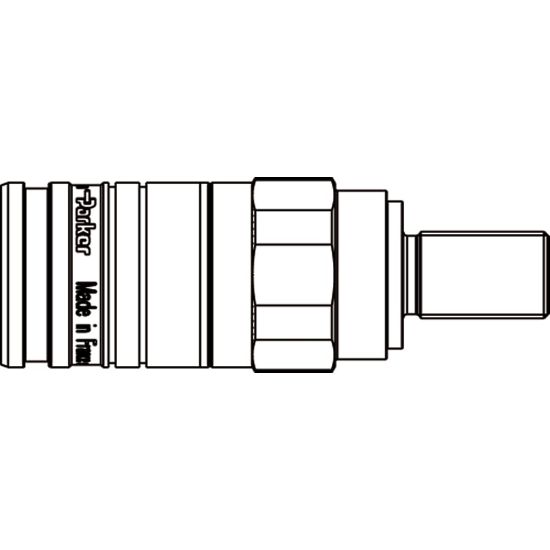

Hydraulic Push-Pull Quick Coupling - ISO A Profile - RSD Series - RSD-501-18BMCL-F

Name: Hydraulic Push-Pull Quick Coupling - ISO A Profile - RSD Series - RSD-501-18BMCL-F
SKU: RSD-501-18BMCL-F
Availability: OutOfStock

Parker Push-Pull quick coupling with interchangeable ISO 7241-1 A profile and body size 1/2" for applications up to 250 bar.

Availability:

Backordered

SKU: RSD-501-18BMCL-F

Qty:

Products specifications

Attribute name	Attribute value
Weight	490 g	Materials of Construction	Chrome VI Free Plated Steel
Product Type	Coupling	Minimum Operating Temperature	-30 °C
Length	110 mm	Outside Diameter	38 mm
Hex Size	38 mm	Division	High Pressure Connectors Europe Division
Body Size	1/2 inch	Seal Material	Composite
Maximum Operating Temperature	110 °C	Maximum Operating Pressure	250 bar
Fitting Type	Coupling	Diameter	n/a
Body Size	n/a	Length	n/a
Connection Thread Size	18x1.5 mm	Connection Type	Male Thread

Product resources

Literature and Reference Materials

Compliance, Certifications & Safety

Safety instructions Quick Couplings
