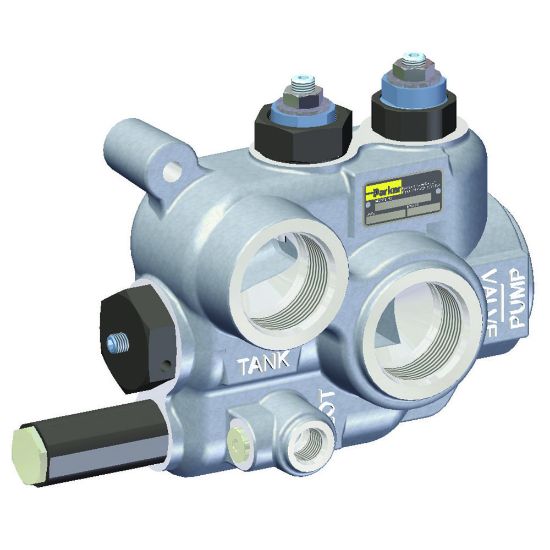

*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.

Hydraulic Pilot Pressure Valve – HP Series - HP-505-MA-NR

Name: Hydraulic Pilot Pressure Valve – HP Series - HP-505-MA-NR
SKU: HP-505-MA-NR
Availability: OutOfStock

Parker’s HP50 Pilot Generation Valve is designed to provide an in-line solution for generating a 300-500 PSI pilot pressure source that is typically required for hydraulic joysticks or solenoid operated main control valves.

Availability:

Backordered

SKU: HP-505-MA-NR

Qty:

Products specifications

Attribute name	Attribute value
Seal Material	n/a	Maximum Operating Pressure	3500 psi
Additional Options	No Relief	Maximum Flow Rate	n/a
For Fluid Type	Hydraulic Oil	Minimum Operating Temperature	-40 °F
Product Style	Hydraulic Pilot Pressure Valves	Mounting Type	In-Line
Pressure Control Range	n/a	Division	Hydraulic Valve Systems Division
Weight	14.5 lb	Body Material	High Strength Cast Iron
Maximum Operating Temperature	+200 °F	Actuation Type	Mechanically Adjustable
Minimum Operating Pressure	-40 °F
Pressure Relief Valve	No relief	Pressure Range (psi)	500
