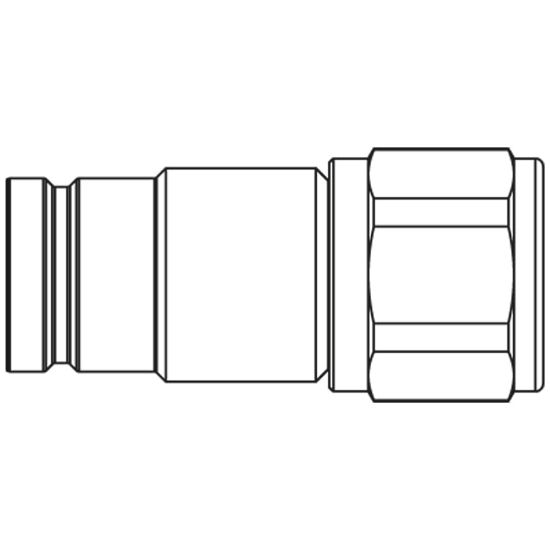

Hydraulic Flat-Face Quick Coupling - Parker Profile - FF Series - FF3820

Name: Hydraulic Flat-Face Quick Coupling - Parker Profile - FF Series - FF3820
SKU: FF3820
Availability: OutOfStock

Parker Flat-Face quick coupling system with body sizes 1/4" up to 1" and Parker Tema profile for applications up to 800 bar.

Availability:

Backordered

SKU: FF3820

Qty:

Products specifications

Attribute name	Attribute value
Maximum Operating Pressure	500 bar	Division	High Pressure Connectors Europe Division
Length	69 mm	Connection Type	Female Thread
Hex Size	32 mm	Outside Diameter	35 mm
Minimum Operating Temperature	-30 °C	Materials of Construction	Brass / Steel
Maximum Operating Temperature	100 °C
Type	Plug	Seal Material	NBR/PUR
Body Size (inch)	3/8	Version	Standard
Connection Thread Size (inch)	3/4

Product resources

Literature and Reference Materials

Hydraulic Quick Couplings Catalogue--CAT/3800-HYD/UK

Literature and Reference Materials,Selector Guides

파카_Non-Spill Quick Coupling_FEM_FF_QHPA시리즈

Compliance, Certifications & Safety

Safety instructions Quick Couplings
