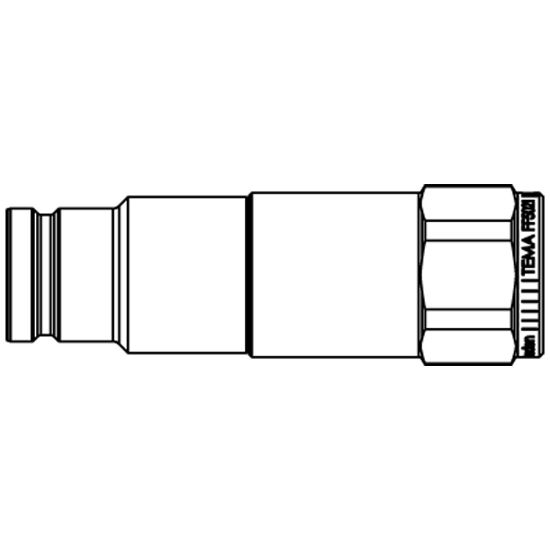

Hydraulic Flat-Face Quick Coupling - Parker Profile - FF Series - FF2521

Name: Hydraulic Flat-Face Quick Coupling - Parker Profile - FF Series - FF2521
SKU: FF2521
Availability: OutOfStock

Parker Flat-Face quick coupling system with body sizes 1/4" up to 1" and Parker Tema profile for applications up to 800 bar.

Availability:

Backordered

SKU: FF2521

Qty:

Products specifications

Attribute name	Attribute value
Materials of Construction	Brass / Steel	Minimum Operating Temperature	-30 °C
Hex Size	27 mm	Outside Diameter	30 mm
Length	99 mm	Maximum Operating Temperature	100 °C
Maximum Operating Pressure	800 bar	Connection Type	Female Thread
Division	High Pressure Connectors Europe Division
Type	Plug	Seal Material	NBR/PUR
Connection Thread Size (inch)	1/4	Body Size (inch)	1/4
Version	Pressure Eliminator

Product resources

Literature and Reference Materials

Hydraulic Quick Couplings Catalogue--CAT/3800-HYD/UK

Compliance, Certifications & Safety

Safety instructions Quick Couplings

Literature and Reference Materials,Selector Guides

파카_Non-Spill Quick Coupling_FEM_FF_QHPA시리즈
