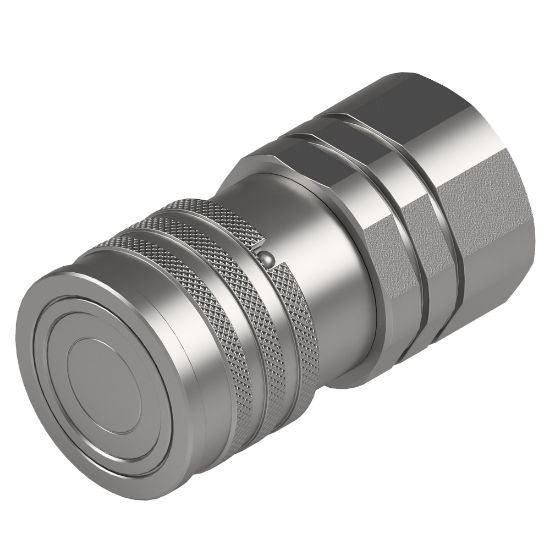

Hydraulic Flat-Face Quick Coupling - ISO 16028 - FEM/IF Series - IF7510 REP

Name: Hydraulic Flat-Face Quick Coupling - ISO 16028 - FEM/IF Series - IF7510 REP
SKU: IF7510 REP
Availability: OutOfStock

Parker Flat-Face quick coupling system with body size 1/8" up to 1" and ISO 16028 for applications up to 450 bar.

Availability:

Backordered

SKU: IF7510 REP

Qty:

Products specifications

Attribute name	Attribute value
Specifications Met	ISO 16028	Plating Type	n/a
Hex Size	46 mm	Seal Material	EPDM
Division	High Pressure Connectors Europe Division	Maximum Operating Temperature	150 °C
Minimum Operating Temperature	-50 °C	Body Material	Stainless Steel
Application	n/a	Product Type	Quick-coupling
Flow Rate	115 L/min
Type	Coupling	Body Size (inch)	3/4
Version	Stainless Steel	Connection Thread Size (inch)	ISO G 3/4"

Product resources

Compliance, Certifications & Safety

Safety instructions Quick Couplings

Literature and Reference Materials

FEM Series--LEAF/3800-FEM-Series/UK
