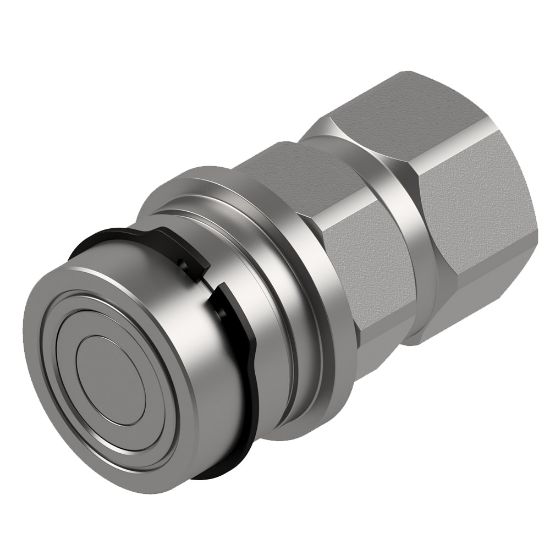

Hydraulic Flat-Face Quick Coupling - ISO 16028 - FEM/IF Series - FEMP-371-6FB

Name: Hydraulic Flat-Face Quick Coupling - ISO 16028 - FEM/IF Series - FEMP-371-6FB
SKU: FEMP-371-6FB
Availability: OutOfStock

Parker Flat-Face quick coupling system with body size 1/8" up to 1" and ISO 16028 for applications up to 450 bar.

Availability:

Backordered

SKU: FEMP-371-6FB

Qty:

Products specifications

Attribute name	Attribute value
Division	High Pressure Connectors Europe Division	Plating Type	Zink Nickel
Minimum Operating Temperature	-40 °C	Specifications Met	ISO 16028
Flow Rate	35 L/min	Application	n/a
Body Material	Steel	Product Type	Quick-coupling
Hex Size	30 mm	Maximum Operating Temperature	110 °C
Seal Material	NBR
Connection Thread Size (inch)	ISO G 3/8"	Version	for Multiplate
Body Size (inch)	3/8	Type	Coupling

Product resources

Literature and Reference Materials

FEM Series--LEAF/3800-FEM-Series/UK

Compliance, Certifications & Safety

Safety instructions Quick Couplings
