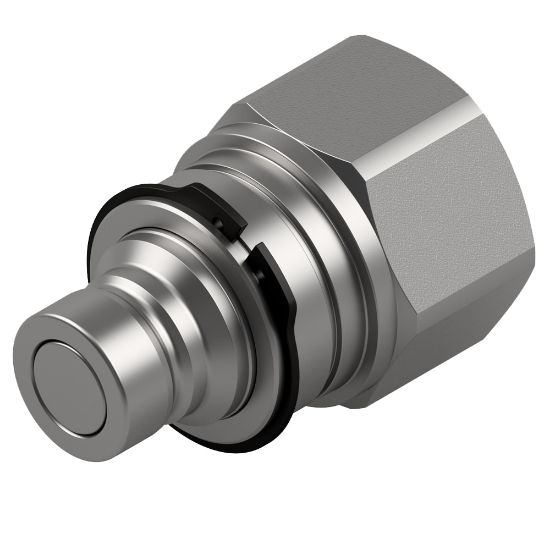

Hydraulic Flat-Face Quick Coupling - ISO 16028 - FEM/IF Series - FEMP-252-4FB-E4

Name: Hydraulic Flat-Face Quick Coupling - ISO 16028 - FEM/IF Series - FEMP-252-4FB-E4
SKU: FEMP-252-4FB-E4
Availability: OutOfStock

Parker Flat-Face quick coupling system with body size 1/8" up to 1" and ISO 16028 for applications up to 450 bar.

Availability:

Backordered

SKU: FEMP-252-4FB-E4

Qty:

Products specifications

Attribute name	Attribute value
Maximum Operating Temperature	200 °C	Plating Type	Zink Nickel
Hex Size	27 mm	Product Type	Quick-coupling
Application	n/a	Body Material	Steel
Division	High Pressure Connectors Europe Division	Minimum Operating Temperature	-25 °C
Flow Rate	11 L/min	Seal Material	FKM
Specifications Met	ISO 16028
Type	Plug	Connection Thread Size (inch)	ISO G 1/4"
Version	for Multiplate	Body Size (inch)	1/4

Product resources

Literature and Reference Materials

FEM Series--LEAF/3800-FEM-Series/UK

Compliance, Certifications & Safety

Safety instructions Quick Couplings
