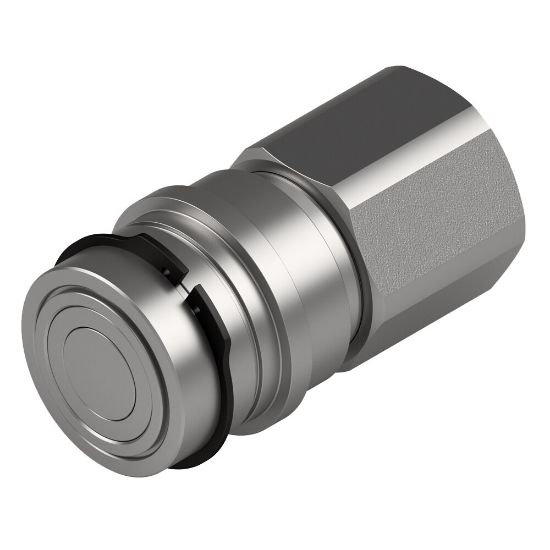

Hydraulic Flat-Face Quick Coupling - ISO 16028 - FEM/IF Series - FEMP-251-4FB

Name: Hydraulic Flat-Face Quick Coupling - ISO 16028 - FEM/IF Series - FEMP-251-4FB
SKU: FEMP-251-4FB
Availability: OutOfStock

Parker Flat-Face quick coupling system with body size 1/8" up to 1" and ISO 16028 for applications up to 450 bar.

Availability:

Backordered

SKU: FEMP-251-4FB

Qty:

Products specifications

Attribute name	Attribute value
Specifications Met	ISO 16028	Hex Size	27 mm
Minimum Operating Temperature	-40 °C	Plating Type	Zink Nickel
Seal Material	NBR	Body Material	Steel
Application	n/a	Product Type	Quick-coupling
Flow Rate	11 L/min	Division	High Pressure Connectors Europe Division
Maximum Operating Temperature	110 °C
Connection Thread Size (inch)	ISO G 1/4"	Version	for Multiplate
Type	Coupling	Body Size (inch)	1/4

Product resources

Literature and Reference Materials

FEM Series--LEAF/3800-FEM-Series/UK

Compliance, Certifications & Safety

Safety instructions Quick Couplings
