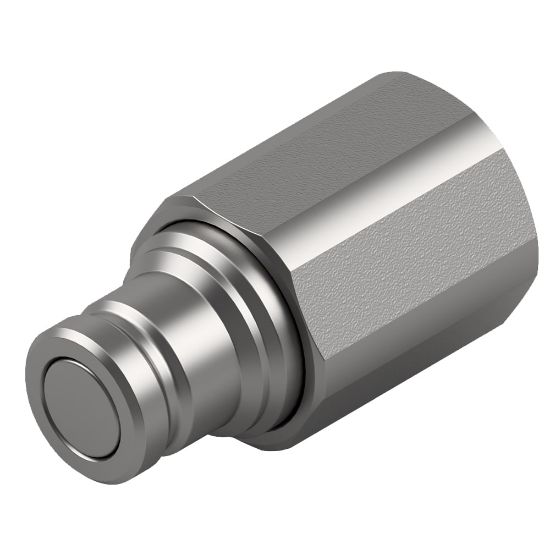

*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.

Hydraulic Flat-Face Quick Coupling - ISO 16028 - FEM/IF Series - FEM-1002-20FB

Name: Hydraulic Flat-Face Quick Coupling - ISO 16028 - FEM/IF Series - FEM-1002-20FB
SKU: FEM-1002-20FB
Availability: OutOfStock

Parker Flat-Face quick coupling system with body size 1/8" up to 1" and ISO 16028 for applications up to 450 bar.

Availability:

Backordered

SKU: FEM-1002-20FB

Qty:

Products specifications

Attribute name	Attribute value
Hex Size	55 mm	Body Material	Steel
Plating Type	Zink Nickel	Seal Material	NBR
Product Type	Quick-coupling	Application	n/a
Maximum Operating Temperature	110 °C	Division	High Pressure Connectors Europe Division
Flow Rate	170 L/min	Minimum Operating Temperature	-40 °C
Specifications Met	ISO 16028
Type	Plug	Body Size (inch)	1
Version	Standard	Connection Thread Size (inch)	ISO G 1 1/4"

California Residents: Prop-65 Warning

Product resources

Literature and Reference Materials

FEM Series--LEAF/3800-FEM-Series/UK

Compliance, Certifications & Safety

Safety instructions Quick Couplings
