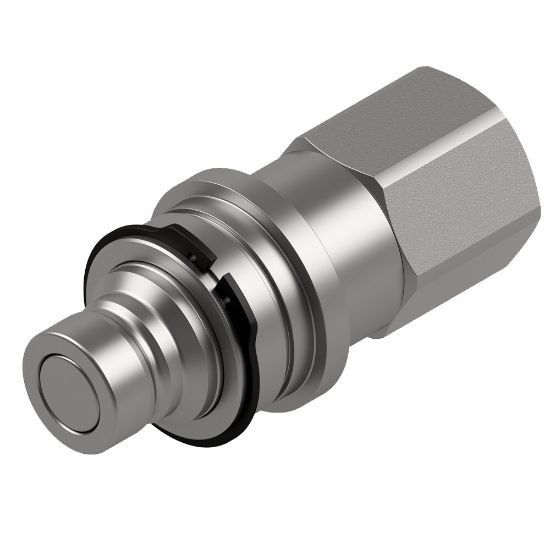

Hydraulic Flat-Face Quick Coupling - ISO 16028 - FEM/IF Series - FECP-502-8FB

Name: Hydraulic Flat-Face Quick Coupling - ISO 16028 - FEM/IF Series - FECP-502-8FB
SKU: FECP-502-8FB
Availability: OutOfStock

Parker Flat-Face quick coupling system with body size 1/8" up to 1" and ISO 16028 for applications up to 450 bar.

Availability:

Backordered

SKU: FECP-502-8FB

Qty:

Products specifications

Attribute name	Attribute value
Flow Rate	50 L/min	Division	High Pressure Connectors Europe Division
Maximum Operating Temperature	110 °C	Minimum Operating Temperature	-40 °C
Hex Size	36 mm	Specifications Met	ISO 16028
Plating Type	Zink Nickel	Seal Material	NBR
Product Type	Quick-coupling	Application	n/a
Body Material	Steel
Connection Thread Size (inch)	ISO G 1/2"	Type	Coupling
Body Size (inch)	1/2	Version	Pressure Eliminator for Multiplate

California Residents: Prop-65 Warning

Product resources

Literature and Reference Materials

FEM Series--LEAF/3800-FEM-Series/UK

Compliance, Certifications & Safety

Safety instructions Quick Couplings
