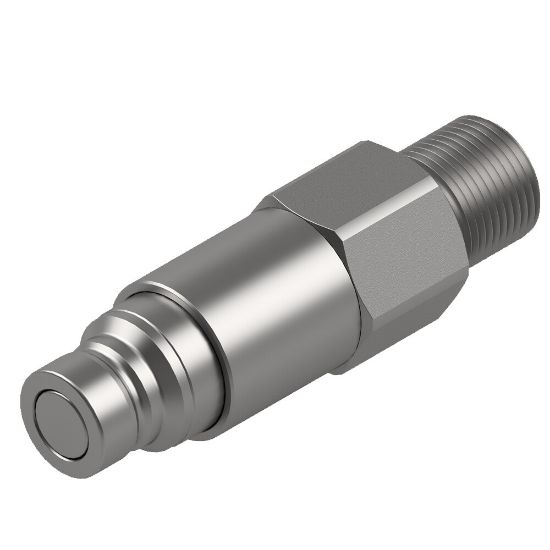

*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.

Hydraulic Flat-Face Quick Coupling - ISO 16028 - FEM/IF Series - FEC-502-22MCL

Name: Hydraulic Flat-Face Quick Coupling - ISO 16028 - FEM/IF Series - FEC-502-22MCL
SKU: FEC-502-22MCL
Availability: OutOfStock

Parker Flat-Face quick coupling system with body size 1/8" up to 1" and ISO 16028 for applications up to 450 bar.

Availability:

Backordered

SKU: FEC-502-22MCL

Qty:

Products specifications

Attribute name	Attribute value
Flow Rate	50 L/min	Division	High Pressure Connectors Europe Division
Maximum Operating Temperature	110 °C	Minimum Operating Temperature	-40 °C
Specifications Met	ISO 16028	Hex Size	36 mm
Plating Type	Zink Nickel	Seal Material	NBR
Application	n/a	Body Material	Steel
Product Type	Quick-coupling
Version	Pressure Eliminator	Connection Thread Size (inch)	M22x1,5 15L
Type	Plug	Body Size (inch)	1/2

Product resources

Literature and Reference Materials

FEM Series--LEAF/3800-FEM-Series/UK

Compliance, Certifications & Safety

Safety instructions Quick Couplings
