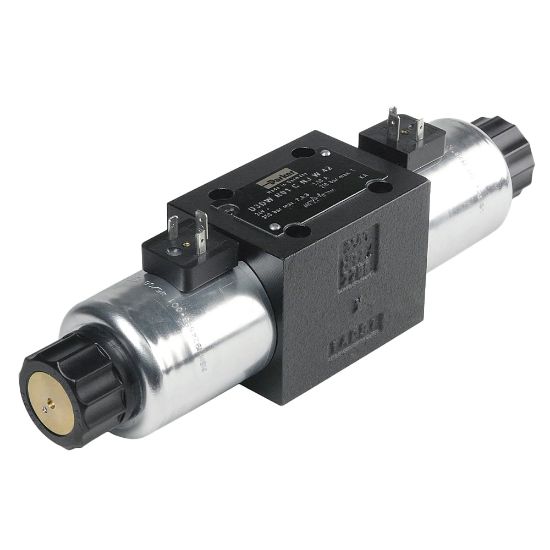

Hybrid Direct Operated Directional Control Valve - Series D3DWR - D3DWR01C9NJW

Name: Hybrid Direct Operated Directional Control Valve - Series D3DWR - D3DWR01C9NJW
SKU: D3DWR01C9NJW
Availability: OutOfStock

The regenerative and hybrid direct operated directional control valves series D3DWR in NG10 allow energy saving circuits with differential cylinders.

Availability:

Backordered

SKU: D3DWR01C9NJW

Qty:

Products specifications

Attribute name	Attribute value
Division	Industrial Systems Division Europe	Maximum Operating Temperature	60 °C
Mounting Type	Subplate	Seal Material	NBR
For Fluid Type	Hydraulic Oil	Body Material	Cast Iron
Operation Type	Direct	Mounting Position	Unrestricted
Actuation Type	Solenoid	Maximum Flow Rate	150 L/min
Weight	6.3 kg	Minimum Operating Temperature	-25 °C
Input Voltage	24 VDC	Function	3-Way
Port Connection	NG10 / CETOP 05	Product Series	Directional Control Valve
Connection Type	Connector as per EN 175301-803	Maximum Operating Pressure	210 bar Port Y
Seal Material	NBR	Spool Position	3 positions, spring offset in position 0, operated in position a or b
Solenoid Option	Without manual override	Spool Code	R01
Drain Option	X and Y for high pressure in T1 (tank) or T2 (regenerative function)
