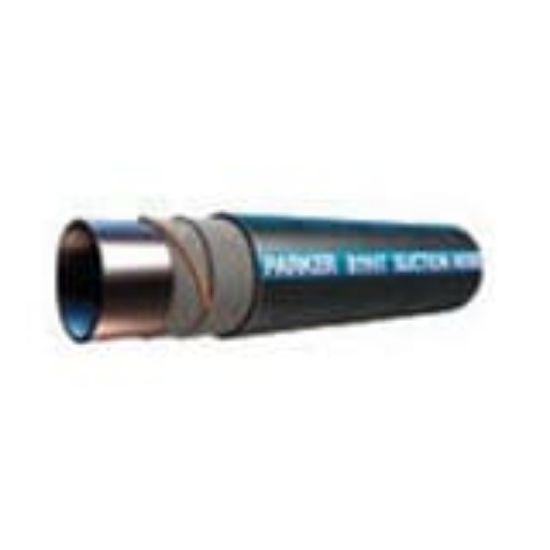

High Temperature Suction and Return Line Hose 62-300 PSI – 811HT Hose - 811HT-32

Parker’s 811HT hose is a suction and return line hose that has a working pressure range of 62-300 PSI which is designed for high temperature applications.

Availability:	Backordered
Partner Available:	176 in stock

SKU: 811HT-32

$45.59

Products specifications

Attribute name	Attribute value
Division	Hose Products Division	Maximum Operating Temperature	125 °C
Design Factor	4:1	Minimum Bend Radius	152 mm
Application	Petroleum Base Hydraulic Fluids	Inside Diameter	2 inch
Hose Cover Type	Standard Cover	Compatible Fitting	43 Series
Hose Inner Tube Material	Synthetic Rubber	Media	Petroleum Hydraulic Fluids
Cover Material	MSHA Approved	Outside Diameter	2.500 inch
Minimum Operating Temperature	-46 °C	Specifications Met	MSHA
Vacuum Pressure Rating	95 kPa	Nominal Hose Inside Diameter	50 mm
Weight	1.26 lb/ft	Maximum Operating Pressure	0.7 MPa
Hose Reinforcement Material	Multiple Layers of Spiral Fiber with Wire Helix
Hose I.D. (size)	-32

Product resources

Literature and Reference Materials

Hose Products Division Catalog 4400 - Hose, Fittings, Accessories and Equipment
