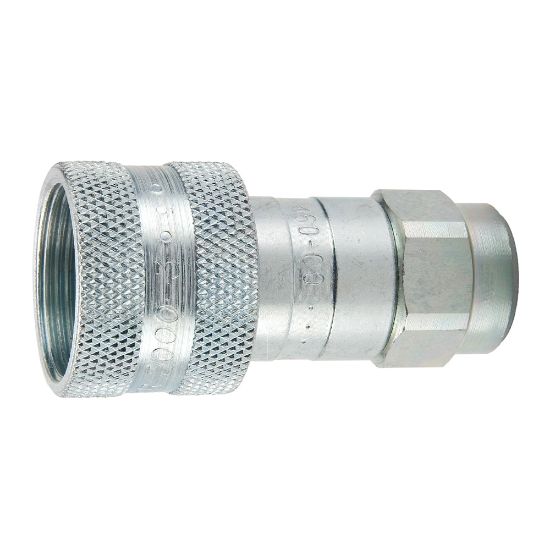

High Pressure, Thread to Connect Quick Couplings - 3000 series - 3050-3-231

Parker's high pressure, thread to connect quick couplers and nipples are ideal for fast and easy connection and disconnection of hydraulic hand tools to fluid lines.

Availability:	70 in stock
Partner Available:	109 in stock

SKU: 3050-3-231

$56.41

Products specifications

Attribute name	Attribute value
Body Material	Steel	Hex Size	1 inch
Division	Quick Coupling Division	Maximum Operating Pressure	10000 psi
Plating Type	Zinc with clear trivalent chromate	Application	High Pressure Hydraulics
Product Type	Thread to Connect	Seal Material	Polyurethane
Minimum Operating Temperature	-22 °F	Maximum Operating Temperature	230 °F
Flow Rate	6 Gal/min	Valve Type	Ball
Dimensional Weight	0.05341726618705036 lb
Coupling Half	Female Coupler	Connection Type	Female NPTF
Body Size	3/8 inch	Connection Thread Size	3/8 - 18
