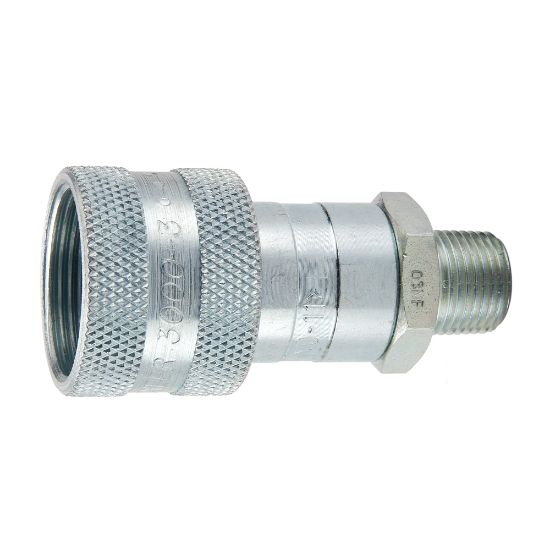

High Pressure, Thread to Connect Quick Couplings - 3000 series - 3050-3

Parker's high pressure, thread to connect quick couplers and nipples are ideal for fast and easy connection and disconnection of hydraulic hand tools to fluid lines.

Availability:	84 in stock
Partner Available:	651 in stock

SKU: 3050-3

$51.15

Products specifications

Attribute name	Attribute value
Body Material	Steel	Hex Size	1 inch
Division	Quick Coupling Division	Maximum Operating Pressure	10000 psi
Plating Type	Zinc with clear trivalent chromate	Application	High Pressure Hydraulics
Product Type	Thread to Connect	Seal Material	Polyurethane
Dimensional Weight	0.07997601918465227 lb	Minimum Operating Temperature	-22 °F
Maximum Operating Temperature	230 °F	Flow Rate	6 Gal/min
Valve Type	Ball
Connection Type	Male NPTF	Coupling Half	Female Coupler
Body Size	3/8 inch	Connection Thread Size	3/8 - 18
