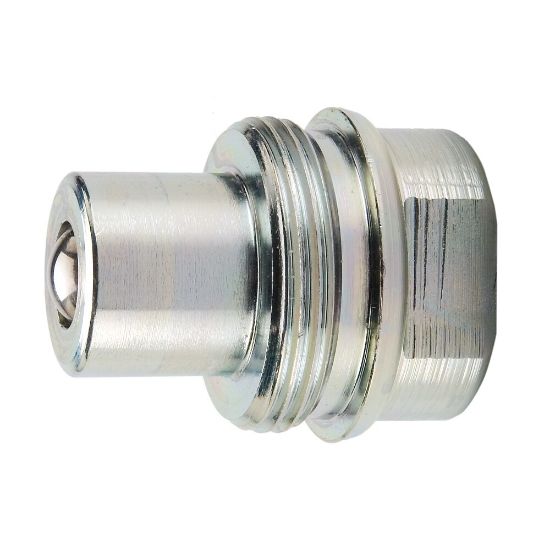

High Pressure, Thread to Connect Quick Couplings - 3000 series - 3010-2

Parker's high pressure, thread to connect quick couplers and nipples are ideal for fast and easy connection and disconnection of hydraulic hand tools to fluid lines.

Availability:	167 in stock
Partner Available:	756 in stock

SKU: 3010-2

$31.28

Products specifications

Attribute name	Attribute value
Body Material	Steel	Division	Quick Coupling Division
Maximum Operating Pressure	10000 psi	Plating Type	Zinc with clear trivalent chromate
Application	High Pressure Hydraulics	Product Type	Thread to Connect
Seal Material	Polyurethane	Hex Size	0.88 inch
Dimensional Weight	0.01999400479616307 lb	Minimum Operating Temperature	-22 °F
Maximum Operating Temperature	230 °F	Flow Rate	3 Gal/min
Valve Type	Ball
Coupling Half	Male Nipple	Connection Type	Female NPTF
Body Size	1/4 inch	Connection Thread Size	1/4 - 18
