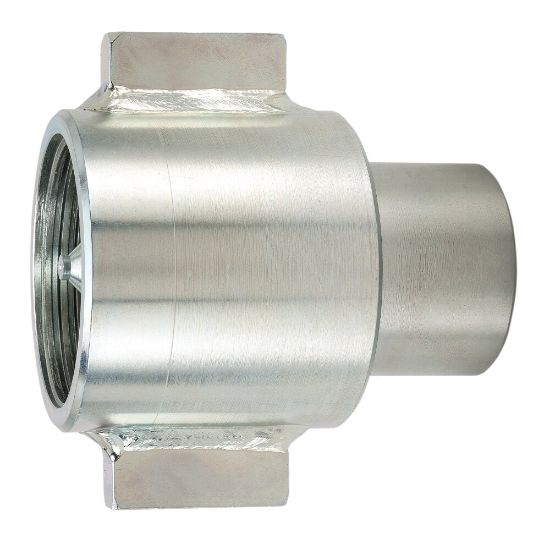

High Pressure, Thread to Connect Couplings, API 16D - 75 Series - S75C24-24RPV

Name: High Pressure, Thread to Connect Couplings, API 16D - 75 Series - S75C24-24RPV
SKU: S75C24-24RPV
Availability: OutOfStock

Parker's heavy duty thread to connect quick couplers and nipples are used in rugged hydraulic applications where fluid lines require connection and disconnection while either the coupler or nipple are under residual pressure.

Availability:

Backordered

SKU: S75C24-24RPV

Qty:

Products specifications

Attribute name	Attribute value
Division	Quick Coupling Division	Seal Material	Nitrile
Product Type	Thread-to-Connect	Body Material	Stainless Steel
Maximum Operating Temperature	250 °F	Application	Hydraulic high pressure, connect under pressure
Valve Type	Poppet	Minimum Operating Temperature	-40 °F
Hex Size	2.25 inch	Plating Type	na
Connection Thread Size (inch)	1 1/2 - 11 1/2	Coupling Half	Female Coupler
Sleeve Type	Wing nut	Body Size (inch)	1 1/2
Connection Type	Female BSPP	Maximum Operating Pressure	3000
Specifications Met	na
