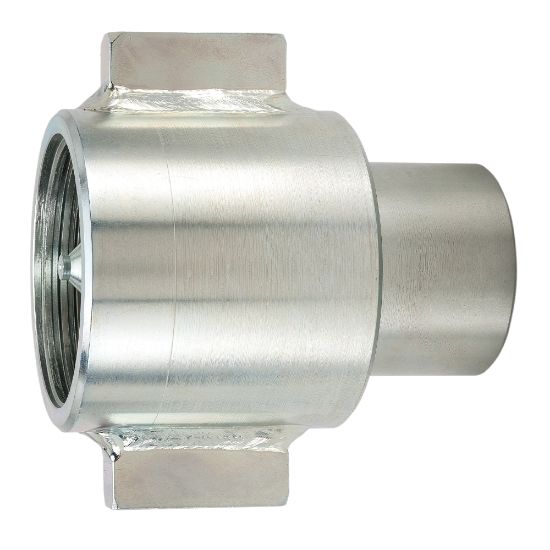

High Pressure, Thread to Connect Couplings, API 16D - 75 Series - 75C16-16RPW

Name: High Pressure, Thread to Connect Couplings, API 16D - 75 Series - 75C16-16RPW
SKU: 75C16-16RPW
Availability: OutOfStock

Parker's heavy duty thread to connect quick couplers and nipples are used in rugged hydraulic applications where fluid lines require connection and disconnection while either the coupler or nipple are under residual pressure.

Availability:

Backordered

SKU: 75C16-16RPW

Qty:

Products specifications

Attribute name	Attribute value
Division	Quick Coupling Division	Product Type	Thread-to-Connect
Hex Size	1.69 inch	Seal Material	Nitrile
Body Material	Steel	Maximum Operating Temperature	250 °F
Application	Hydraulic high pressure, connect under pressure	Minimum Operating Temperature	-40 °F
Valve Type	Poppet	Plating Type	Zinc with clear trivalent chromate
Maximum Operating Pressure	5000	Connection Thread Size (inch)	1 - 11 1/2
Coupling Half	Female Coupler	Sleeve Type	Wing nut
Connection Type	Female BSPP	Body Size (inch)	1
Specifications Met	na
