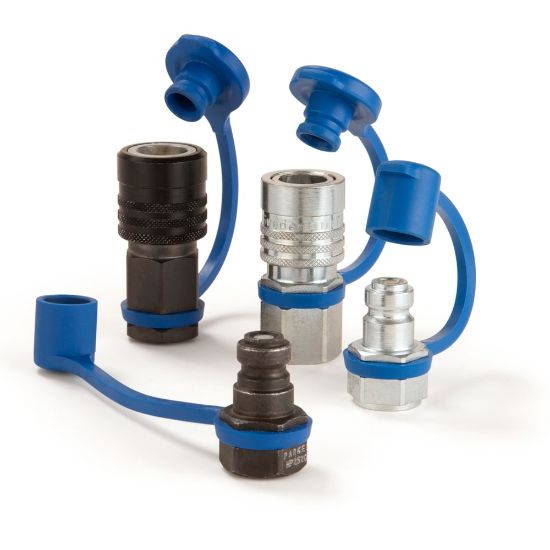

High Pressure Quick Coupling with Parker Profile, Series HP - HP13-03

Name: High Pressure Quick Coupling with Parker Profile, Series HP - HP13-03
SKU: HP13-03
Availability: OutOfStock

High pressure quick coupling with body size 1/4" for high pressure applications up to 1500 bar. Coupling system with Parker profile.

Availability:

Backordered

SKU: HP13-03

Qty:

Products specifications

Attribute name	Attribute value
Division	High Pressure Connectors Europe Division	Hex Size	na mm
Materials of Construction	Zinc Plated and passivated	Seal Material	Rubber / Steel
Pressure Rating	1000 bar	Outside Diameter	na mm
Body Size	na inch	Length	33 mm
Connection Type	Female Thread	Maximum Working Pressure (Bar)	1000
Additional Safety Feature	na	Type	Adapter
Connection Thread Size (inch)	G 1/4

Product resources

Literature and Reference Materials

Fluid Compatibility Chart
Hydraulic Quick Couplings Catalogue--CAT/3800-HYD/UK
