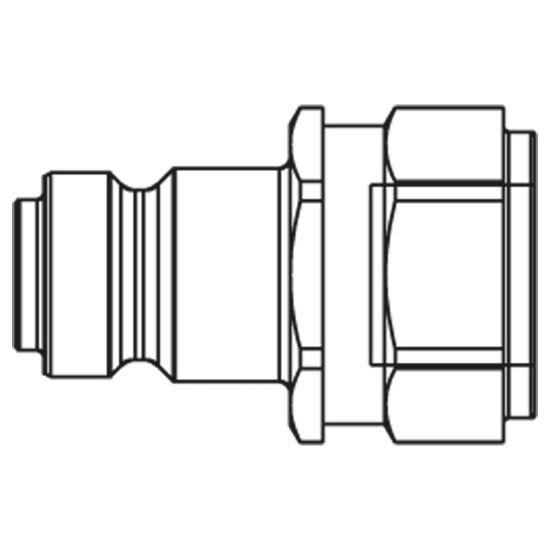

*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.

High Pressure Quick Coupling with Parker Profile, Series HP - HP1020 417

Name: High Pressure Quick Coupling with Parker Profile, Series HP - HP1020 417
SKU: HP1020 417
Availability: OutOfStock

High pressure quick coupling with body size 1/4" for high pressure applications up to 1500 bar. Coupling system with Parker profile.

Availability:

Backordered

SKU: HP1020 417

Qty:

Products specifications

Attribute name	Attribute value
Length	37 mm	Materials of Construction	steel, Zinc Plated
Division	High Pressure Connectors Europe Division	Burst Pressure	>3000 bar
Hex Size	24 mm	Body Size	1/4 inch
Seal Material	NBR	Outside Diameter	25 mm
Type	Plug	Maximum Working Pressure (Bar)	1000
Additional Safety Feature	na	Connection Thread Size (inch)	3/8
Connection Type	Female Thread

Product resources

Literature and Reference Materials

Hydraulic Quick Couplings Catalogue--CAT/3800-HYD/UK
Fluid Compatibility Chart
