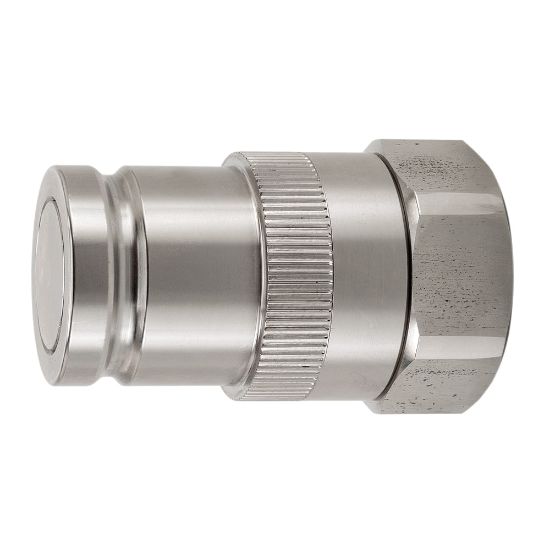

High Pressure , Non-Spill, Flat Face, Hydraulic Quick Couplings - 71 Series - SH71-3N16-16RP

Name: High Pressure , Non-Spill, Flat Face, Hydraulic Quick Couplings - 71 Series - SH71-3N16-16RP
SKU: SH71-3N16-16RP
Availability: OutOfStock

Parker's high pressure stainless steel, non-spill, flat face hydraulic couplers are available in a wide range of sizes for use in hydraulic applications where fluid lines require fast and easy connection and disconnection with minimal spillage.

Availability:

Backordered

SKU: SH71-3N16-16RP

Qty:

Products specifications

Attribute name	Attribute value
Product Type	Push to Connect	Maximum Operating Temperature	250 °F
Valve Type	Non-spill	Minimum Operating Temperature	-40 °F
Application	Hydraulic	Plating Type	na
Division	Quick Coupling Division	Hex Size	1.88 inch
Seal Material	Nitrile
Maximum Operating Pressure	7500	Coupling Half	Male Nipple
Connection Type	Female BSPP	Body Size (inch)	1
Body Material	High pressure stainless steel	Connection Thread Size (inch)	1 - 11 1/2

Product resources

Literature and Reference Materials

Compliance, Certifications & Safety

Safety Guide: Quick Couplings and Related Accessories
