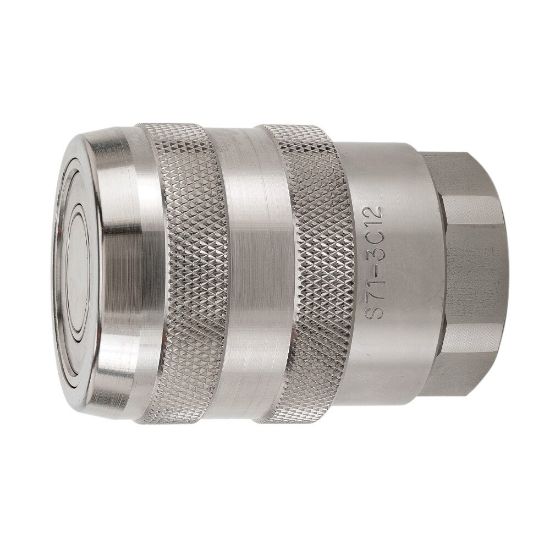

High Pressure , Non-Spill, Flat Face, Hydraulic Quick Couplings - 71 Series - SH71-3C16-16EF

Name: High Pressure , Non-Spill, Flat Face, Hydraulic Quick Couplings - 71 Series - SH71-3C16-16EF
SKU: SH71-3C16-16EF
Availability: OutOfStock

Parker's high pressure stainless steel, non-spill, flat face hydraulic couplers are available in a wide range of sizes for use in hydraulic applications where fluid lines require fast and easy connection and disconnection with minimal spillage.

Availability:

Backordered

SKU: SH71-3C16-16EF

Qty:

Products specifications

Attribute name	Attribute value
Plating Type	na	Application	Hydraulic
Hex Size	2.00 inch	Division	Quick Coupling Division
Product Type	Push to Connect	Seal Material	Nitrile
Valve Type	Non-spill	Maximum Operating Temperature	250 °F
Minimum Operating Temperature	-40 °F
Connection Type	Female UNF	Body Material	High pressure stainless steel
Coupling Half	Female Coupler	Connection Thread Size (inch)	1 - 11 1/2
Maximum Operating Pressure	7500	Body Size (inch)	1
