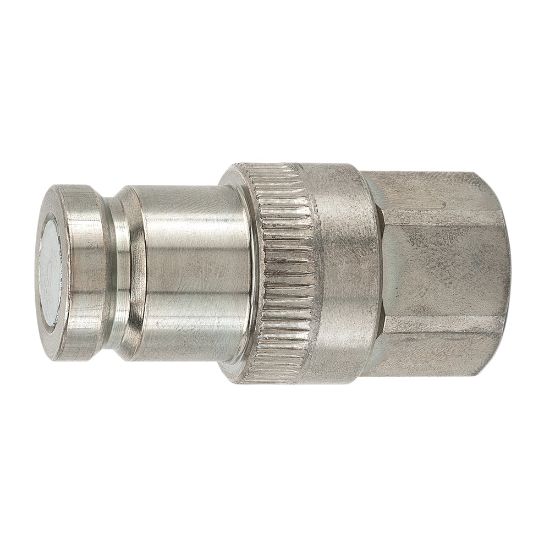

High Pressure , Non-Spill, Flat Face, Hydraulic Quick Couplings - 71 Series - 71-3N4-4RP

Name: High Pressure , Non-Spill, Flat Face, Hydraulic Quick Couplings - 71 Series - 71-3N4-4RP
SKU: 71-3N4-4RP
Availability: OutOfStock

Parker's high pressure stainless steel, non-spill, flat face hydraulic couplers are available in a wide range of sizes for use in hydraulic applications where fluid lines require fast and easy connection and disconnection with minimal spillage.

Availability:

Backordered

SKU: 71-3N4-4RP

Qty:

Products specifications

Attribute name	Attribute value
Minimum Operating Temperature	-40 °F	Seal Material	Nitrile
Division	Quick Coupling Division	Maximum Operating Temperature	250 °F
Plating Type	Zinc with clear trivalent chromate	Hex Size	0.81 inch
Application	Hydraulic	Valve Type	Non-spill
Product Type	Push to Connect
Body Material	Steel	Coupling Half	Male Nipple
Body Size (inch)	1/4	Connection Thread Size (inch)	1/4 - 18
Connection Type	Female BSPP	Maximum Operating Pressure	10000

California Residents: Prop-65 Warning

Product resources

Literature and Reference Materials

Compliance, Certifications & Safety

Safety Guide: Quick Couplings and Related Accessories
