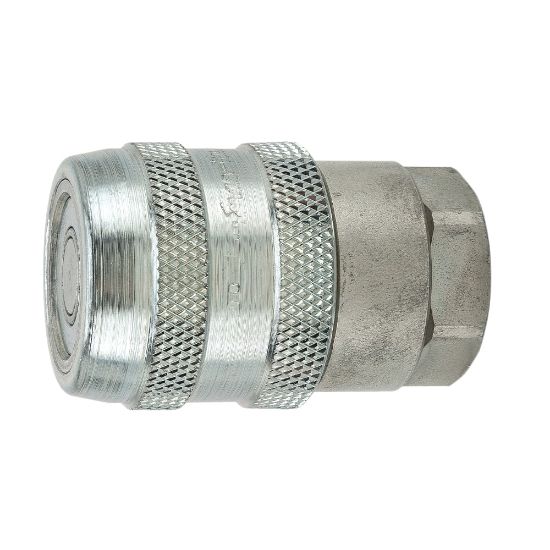

*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.

High Pressure , Non-Spill, Flat Face, Hydraulic Quick Couplings - 71 Series - 71-3C16-20RP

Name: High Pressure , Non-Spill, Flat Face, Hydraulic Quick Couplings - 71 Series - 71-3C16-20RP
SKU: 71-3C16-20RP
Availability: OutOfStock

Parker's high pressure stainless steel, non-spill, flat face hydraulic couplers are available in a wide range of sizes for use in hydraulic applications where fluid lines require fast and easy connection and disconnection with minimal spillage.

Availability:

Backordered

SKU: 71-3C16-20RP

Qty:

Products specifications

Attribute name	Attribute value
Application	Hydraulic	Plating Type	Zinc with clear trivalent chromate
Hex Size	2.00 inch	Division	Quick Coupling Division
Seal Material	Nitrile	Product Type	Push to Connect
Valve Type	Non-spill	Maximum Operating Temperature	250 °F
Minimum Operating Temperature	-40 °F
Coupling Half	Female Coupler	Connection Thread Size (inch)	1 1/4 - 11 1/2
Maximum Operating Pressure	7500	Connection Type	Female BSPP
Body Size (inch)	1	Body Material	Steel

California Residents: Prop-65 Warning

Product resources

Literature and Reference Materials

Compliance, Certifications & Safety

Safety Guide: Quick Couplings and Related Accessories
