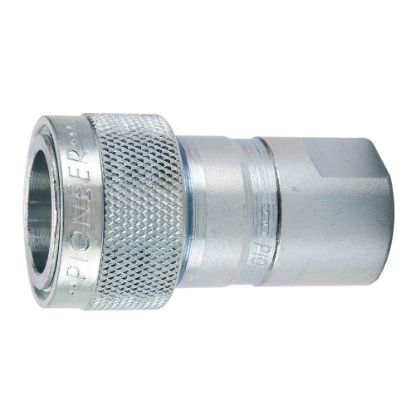

High Pressure, Hydraulic General Purpose Quick Couplings - SM Series - SM-751-16FP

Parker's general purpose quick couplers and nipples are ideal for use in hydraulic applications where fluid lines require fast and easy connection and disconnection.

Availability:	Backordered
Partner Available:	24 in stock

SKU: SM-751-16FP

$142.67

Products specifications

Attribute name	Attribute value
Maximum Operating Temperature	250 °F	Product Type	Manual Connect
Minimum Operating Temperature	-40 °F	Valve Type	Poppet
Hex Size	1.62	Plating Type	Zinc with clear trivalent chromate
Division	Quick Coupling Division	Seal Material	Nitrile
Application	Hydraulic \|General purpose	Body Material	Steel
Flow Rate	28 GAL/MIN	Coupling Half	Female Coupler
Maximum Operating Pressure	4500 PSI	Connection Thread Size (inch)	1 - 11 1/2
Connection Type	Female NPTF	Body Size (inch)	3/4
