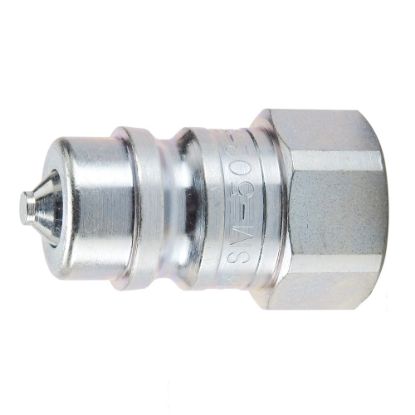

High Pressure, Hydraulic General Purpose Quick Couplings - SM Series - SM-501-8FP

Parker's general purpose quick couplers and nipples are ideal for use in hydraulic applications where fluid lines require fast and easy connection and disconnection.

Availability:	6 in stock
Partner Available:	80 in stock

SKU: SM-501-8FP

$63.66

Products specifications

Attribute name	Attribute value
Division	Quick Coupling Division	Dimensional Weight	0.12464028776978417 lb
Hex Size	1.25	Seal Material	Nitrile
Application	General Purpose	Body Material	Steel
Maximum Operating Temperature	250 °F	Product Type	Manual Connect
Valve Type	Poppet	Minimum Operating Temperature	-40 °F
Plating Type	Zinc with clear trivalent chromate
Coupling Half	Female Coupler	Connection Type	Female NPTF
Flow Rate	12 GAL/MIN	Body Size (inch)	1/2
Maximum Operating Pressure	6000 PSI	Connection Thread Size (inch)	1/2 - 14
