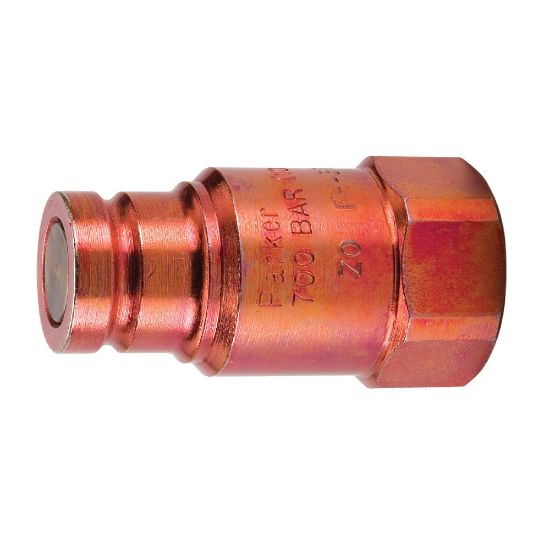

High Pressure, HTMA, Non-Spill, Flat Face Quick Couplings with Sleeve Lock - FH Series - FH-372-6FP

Parker's high pressure non-spill, flat face hydraulic quick couplers are ideal for use across a variety of hydraulic applications where fluid lines require fast and easy connection and disconnection with minimal spillage and limited air inclusion.

Availability:	Backordered
Partner Available:	18 in stock

SKU: FH-372-6FP

$73.80

Products specifications

Attribute name	Attribute value
Specifications Met	HTMA	Valve Type	Non-spill
Maximum Operating Temperature	250 °F	Minimum Operating Temperature	-40 °F
Dimensional Weight	0.05341726618705036 lb	Maximum Operating Pressure	10000 psi
Body Material	Steel	Plating Type	Zinc with trivalent chromate, red finish
Application	High Pressure Hydraulics	Seal Material	Nitrile-PTFE
Product Type	Push to Connect	Hex Size	1 inch
Division	Quick Coupling Division	Flow Rate	6 Gal/min
Connection Thread Size	3/8 - 18	Coupling Half	Male Nipple
Connection Type	Female NPTF	Body Size	3/8 inch

Customers who bought this item also bought

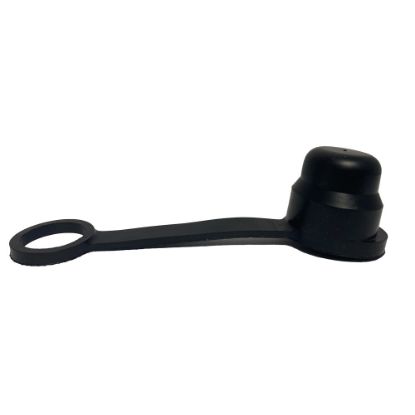

Protective Dust Caps and Plugs (Molded and Metal) for Quick Couplings - NR-100
