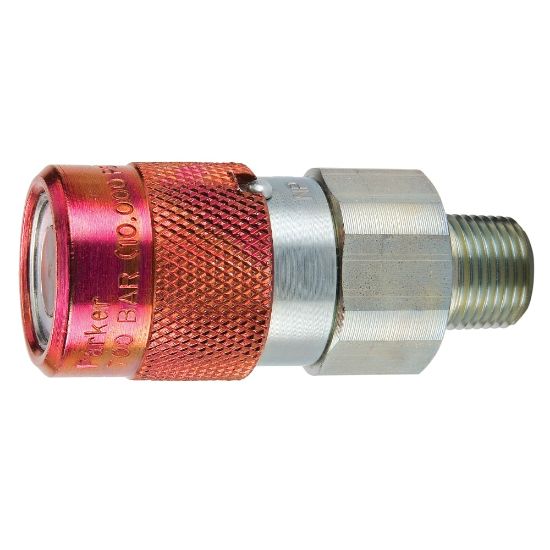

High Pressure, HTMA, Non-Spill, Flat Face Quick Couplings with Sleeve Lock - FH Series - FH-371-6MP

Parker's high pressure non-spill, flat face hydraulic quick couplers are ideal for use across a variety of hydraulic applications where fluid lines require fast and easy connection and disconnection with minimal spillage and limited air inclusion.

Availability:	Backordered
Partner Available:	4 in stock

SKU: FH-371-6MP

$185.27

Products specifications

Attribute name	Attribute value
Hex Size	1.12 inch	Maximum Operating Pressure	10000.0 psi
Body Material	Steel	Valve Type	Non-spill
Specifications Met	HTMA	Product Type	Push to Connect
Flow Rate	6.0 Gal/min	Minimum Operating Temperature	-40.0 °F
Maximum Operating Temperature	250.0 °F	Division	Quick Coupling Division
Plating Type	Zinc with clear trivalent chromate, red finish on sleeve	Seal Material	Nitrile
Application	Hydraulic, high pressure
Connection Type	Male NPTF	Body Size	3/8 inch
Connection Thread Size	3/8 - 18	Coupling Half	Female Coupler
