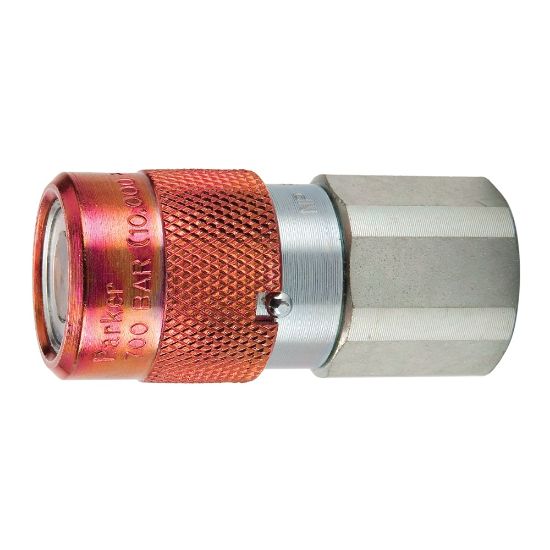

High Pressure, HTMA, Non-Spill, Flat Face Quick Couplings with Sleeve Lock - FH Series - FH-371-6FP

Parker's high pressure non-spill, flat face hydraulic quick couplers are ideal for use across a variety of hydraulic applications where fluid lines require fast and easy connection and disconnection with minimal spillage and limited air inclusion.

Availability:	3 in stock
Partner Available:	19 in stock

SKU: FH-371-6FP

$185.27

Products specifications

Attribute name	Attribute value
Maximum Operating Pressure	10000 psi	Body Material	Steel
Application	High Pressure Hydraulics	Plating Type	Zinc with clear trivalent chromate, red finish on sleeve
Seal Material	Nitrile	Product Type	Push to Connect
Hex Size	1.12 inch	Division	Quick Coupling Division
Flow Rate	6 Gal/min	Specifications Met	HTMA
Valve Type	Non-spill	Maximum Operating Temperature	250 °F
Dimensional Weight	0.05341726618705036 lb	Minimum Operating Temperature	-40 °F
Connection Thread Size	3/8 - 18	Coupling Half	Female Coupler
Connection Type	Female NPTF	Body Size	3/8 inch

Product resources

Literature and Reference Materials

Compliance, Certifications & Safety

Safety Guide: Quick Couplings and Related Accessories
