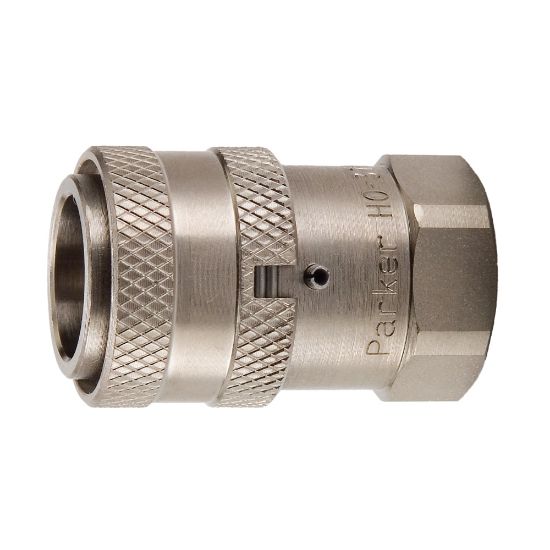

High Pressure, High Flow, Steel Quick Couplings with Sleeve Lock - HO Series - HO-371-6FP

Parker's high pressure and high flow quick couplers are ideal for use with high pressure hydraulic applications where fluid lines require fast and easy connection and disconnection while providing maximum flow and low pressure drop.

Availability:	Backordered
Partner Available:	1 in stock

SKU: HO-371-6FP

$178.60

Products specifications

Attribute name	Attribute value
Application	Hydraulic, high pressure, high flow	Maximum Operating Temperature	250.0 °F
Division	Quick Coupling Division	Flow Rate	6.0 Gal/min
Minimum Operating Temperature	-40.0 °F	Body Size	3/8 inch
Hex Size	0.94 inch	Seal Material	Nitrile with PTFE backup
Product Type	Manual Connect	Body Material	Steel
Plating Type	Electroless nickel	Valve Type	Unvalved
Coupling Half	Female Coupler	Connection Thread Size	3/8 - 18
Connection Type	Female NPTF	Maximum Operating Pressure	15000.0

Product resources

Literature and Reference Materials

Compliance, Certifications & Safety

Safety Guide: Quick Couplings and Related Accessories
