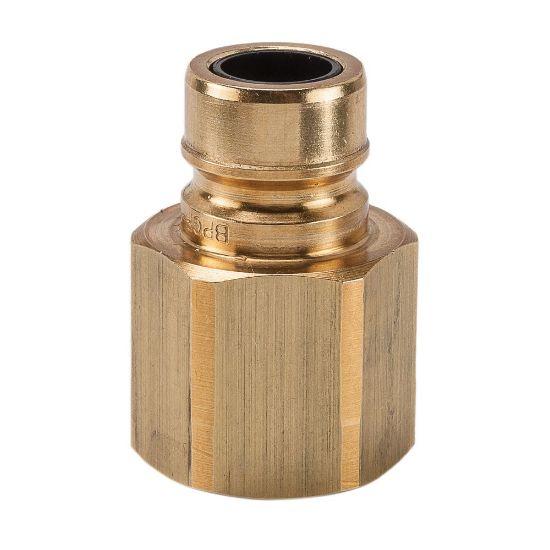

*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.

High Pressure, High Flow, Hydraulic Quick Couplings - HP Series - HP-1002-16FP

Parker's high pressure quick couplers and nipples are ideal for use in hydraulic applications where fluid lines require fast and easy connection and disconnection.

Availability:	Backordered
Partner Available:	8 in stock

SKU: HP-1002-16FP

$332.95

Products specifications

Attribute name	Attribute value
Hex Size	1.62 inch	Division	Quick Coupling Division
Flow Rate	50 Gal/min	Product Type	Manual Connect inch
Application	Hydraulic, high pressure	Seal Material	Nitrile
Maximum Operating Temperature	250 °F	Body Material	Steel
Plating Type	Zinc with clear trivalent chromate	Valve Type	Poppet
Maximum Operating Pressure	5000 psi	Minimum Operating Temperature	-40 °F
Connection Thread Size (inch)	1 - 11 1/2	Connection Type	Female NPSF
Body Size	1	Coupling Half	Male Nipple

Product resources

Literature and Reference Materials

Compliance, Certifications & Safety

Safety Guide: Quick Couplings and Related Accessories
