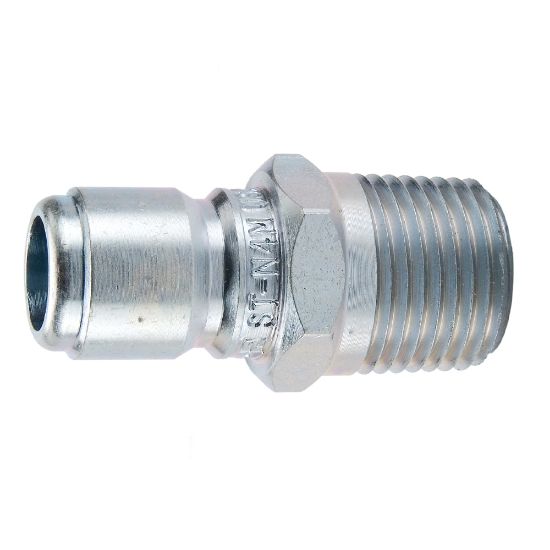

High Flow, Unvalved, Hydraulic Quick Couplings - ST Series - ST-N8M

Parker's high flow quick couplers and nipples are unvalved for use where fluid lines require fast and easy connection and disconnection while providing maximum flow and low pressure drop.

Availability:	Backordered
Partner Available:	3 in stock

SKU: ST-N8M

$62.21

Products specifications

Attribute name	Attribute value
Dimensional Weight	0.12464028776978417 lb	Product Type	Push to Connect
Seal Material	n/a	Maximum Operating Temperature	250 °F
Hex Size	1.38 inch	Minimum Operating Temperature	-40 °F
Application	Hydraulics	Valve Type	Unvalved
Plating Type	Zinc with clear trivalent chromate	Division	Quick Coupling Division
Flow Rate	50 Gal/min
Coupling Half	Male Nipple	Body Size (inch)	1
Maximum Operating Pressure	2000	Body Material	Steel
Connection Type	Male NPTF	Connection Thread Size (inch)	1 - 11 1/2

Product resources

Literature and Reference Materials

Compliance, Certifications & Safety

Safety Guide: Quick Couplings and Related Accessories
