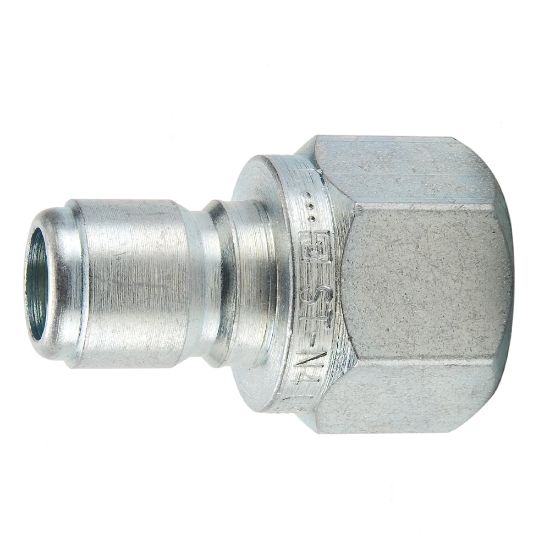

High Flow, Unvalved, Hydraulic Quick Couplings - ST Series - ST-N6

Parker's high flow quick couplers and nipples are unvalved for use where fluid lines require fast and easy connection and disconnection while providing maximum flow and low pressure drop.

Availability:	1 in stock
Partner Available:	114 in stock

SKU: ST-N6

$28.26

Products specifications

Attribute name	Attribute value
Flow Rate	28 Gal/min	Division	Quick Coupling Division
Product Type	Push to Connect	Seal Material	n/a
Maximum Operating Temperature	250 °F	Hex Size	1.38 inch
Minimum Operating Temperature	-40 °F	Valve Type	Unvalved
Application	High Flow	Dimensional Weight	0.05341726618705036 lb
Plating Type	Zinc with clear trivalent chromate
Maximum Operating Pressure	2700	Connection Type	Female NPTF
Body Size (inch)	3/4	Coupling Half	Male Nipple
Body Material	Steel	Connection Thread Size (inch)	3/4 - 14

Customers who bought this item also bought

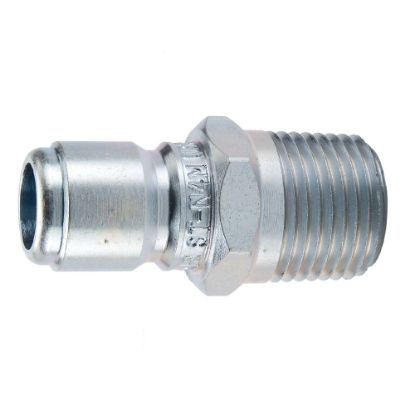

High Flow, Unvalved, Hydraulic Quick Couplings - ST Series - ST-N6M
