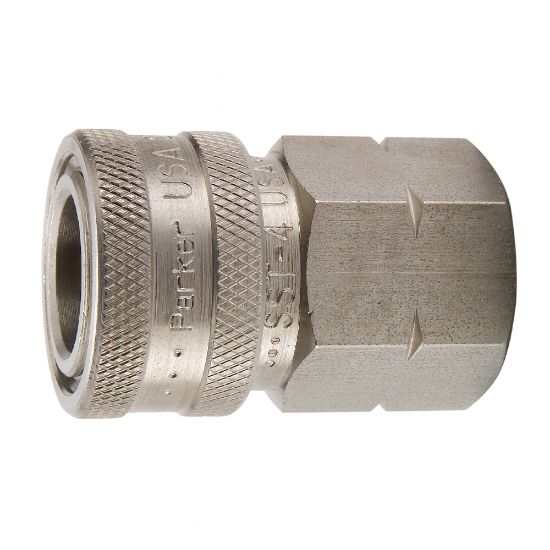

High Flow, Unvalved, Hydraulic Quick Couplings - ST Series - SST-8

Parker's high flow quick couplers and nipples are unvalved for use where fluid lines require fast and easy connection and disconnection while providing maximum flow and low pressure drop.

Availability:	Backordered
Partner Available:	8 in stock

SKU: SST-8

$203.54

Products specifications

Attribute name	Attribute value
Hex Size	1.75 inch	Maximum Operating Temperature	250 °F
Application	High Flow	Minimum Operating Temperature	-40 °F
Valve Type	Unvalved	Flow Rate	50 Gal/min
Division	Quick Coupling Division	Dimensional Weight	0.6232014388489209 lb
Seal Material	Nitrile	Product Type	Push to Connect
Body Size (inch)	1	Body Material	303 Stainless Steel
Coupling Half	Female Coupler	Maximum Operating Pressure	1700
Connection Thread Size (inch)	1 - 11 1/2	Connection Type	Female NPTF

Product resources

Literature and Reference Materials

Compliance, Certifications & Safety

Safety Guide: Quick Couplings and Related Accessories
