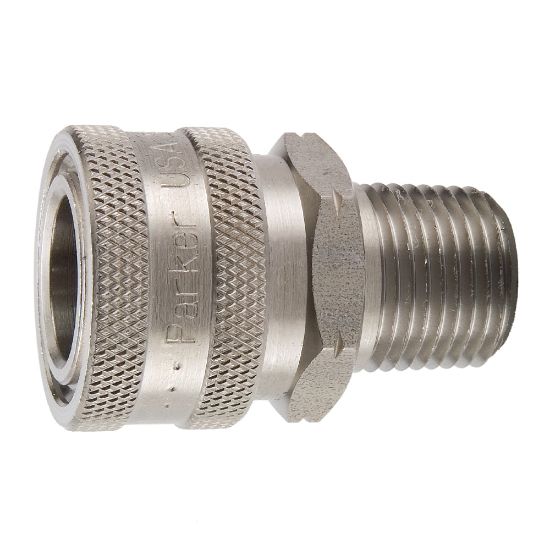

High Flow, Unvalved, Hydraulic Quick Couplings - ST Series - SST-2Y

Parker's high flow quick couplers and nipples are unvalved for use where fluid lines require fast and easy connection and disconnection while providing maximum flow and low pressure drop.

Availability:	Backordered
Partner Available:	Backordered

SKU: SST-2Y

$108.89

Products specifications

Attribute name	Attribute value
Maximum Operating Temperature	400 °F	Valve Type	Unvalved
Hex Size	0.81 inch	Application	High Flow
Minimum Operating Temperature	-15 °F	Flow Rate	6 Gal/min
Division	Quick Coupling Division	Seal Material	Fluorocarbon
Product Type	Push to Connect
Body Material	303 Stainless Steel	Coupling Half	Female Coupler
Maximum Operating Pressure	6700	Body Size (inch)	1/4
Connection Type	Female NPTF	Connection Thread Size (inch)	1/4 - 18

Product resources

Compliance, Certifications & Safety

Safety Guide: Quick Couplings and Related Accessories

Literature and Reference Materials
