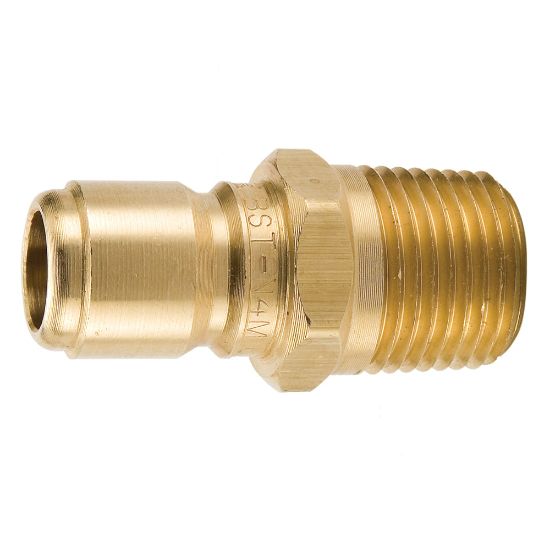

High Flow, Unvalved, Hydraulic Quick Couplings - ST Series - BST-N3M

Parker's high flow quick couplers and nipples are unvalved for use where fluid lines require fast and easy connection and disconnection while providing maximum flow and low pressure drop.

Availability:	123 in stock
Partner Available:	953 in stock

SKU: BST-N3M

$7.76

Products specifications

Attribute name	Attribute value
Product Type	Push to Connect	Flow Rate	12 Gal/min
Hex Size	0.69 inch	Seal Material	n/a
Maximum Operating Temperature	250 °F	Valve Type	Unvalved
Application	Hydraulics	Plating Type	n/a
Minimum Operating Temperature	-40 °F	Dimensional Weight	0.01999400479616307 lb
Division	Quick Coupling Division
Maximum Operating Pressure	2700	Body Size (inch)	3/8
Coupling Half	Male Nipple	Connection Thread Size (inch)	3/8 - 18
Body Material	BRASS	Connection Type	Male NPTF

Product resources

Compliance, Certifications & Safety

Safety Guide: Quick Couplings and Related Accessories

Literature and Reference Materials
