*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.

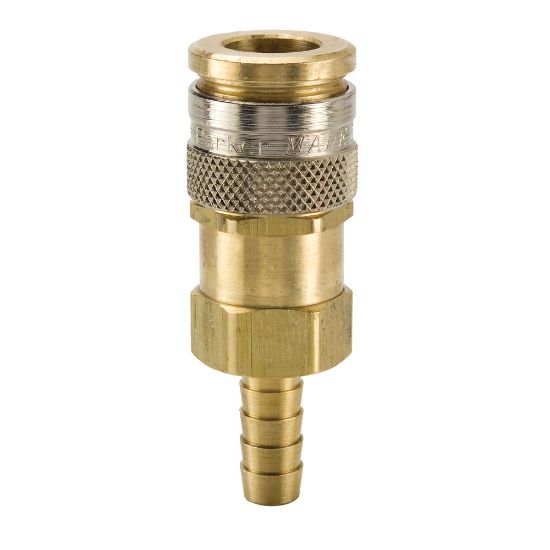

High Flow, Push to Connect, Air Tool & Breathing Air Quick Couplings (pneu) High Flow European Interchange - RF Series Couplers - RF-371-6HB

Name: High Flow, Push to Connect, Air Tool & Breathing Air Quick Couplings (pneu) High Flow European Interchange - RF Series Couplers - RF-371-6HB
SKU: RF-371-6HB
Availability: OutOfStock

Note: This product is no longer available - please refer to the “Recommended Products” section of this page for alternative products, or contact us for further assistance.

Availability:

Backordered

SKU: RF-371-6HB

Qty:

Products specifications

Attribute name	Attribute value
Lock Type	Locking balls	Minimum Operating Temperature	-40 °F
Plating Type	Nickel plating on steel sleeve	Body Material	BRASS
Specifications Met	Interchanges with Rectus 27 and CEJN 410	Division	Quick Coupling Division
Valve Type	Tubular	Coupling Half	Coupler
Sleeve Type	Push to Connect	Maximum Operating Pressure	300 psi
Application	Pneumatic	Seal Material	Nitrile
Maximum Operating Temperature	250 °F	Media	Low pressure fluids and compressed air
Hose I.D.	3/8"	Connection Thread Size	n/a
Thread Style	na	Body Size	3/8"
Connection Type	Hose Barb

California Residents: Prop-65 Warning

Product resources

Literature and Reference Materials

Catalog 3800 Quick Coupling Products
