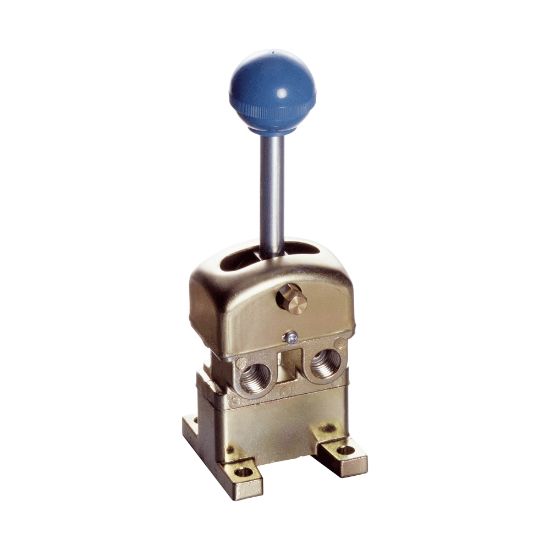

Hand Valve Model:4PN - H3FG00008592

Name: Hand Valve Model:4PN - H3FG00008592
SKU: H3FG00008592
Availability: OutOfStock

4-port switching valve 4PN series for hand operation that is extremely durable with a robust structure. A wide variety of connection port sizes are available, from Rc1/4 to Rc3/4. (BSPT)

Availability:

Backordered

SKU: H3FG00008592

Qty:

Products specifications

Attribute name	Attribute value
Weight	2.3 kg	Pressure Rating	0 to 1 MPa
For Fluid Type	Air	Installation	Free
Proof Pressure	1.5 MPa	Lubricant	JIS K2213 Class 1 (Additive-free Turbine Oil ISO VG32) or its equivalent
Division	TAIYO Division	Operating Temperature	-10 to 50 °C (No freezing)(Ambient/Fluid temperature)
Valve Type	Lever Operation	Orifice Size	31mm²
Outlet Port Size	Rc1/2	Spool Position	3-position closed center(Detent)
Spool Type	4-port 3-position

Product resources

Literature and Reference Materials

Foot valve 4F 4FN 4PN catalog
