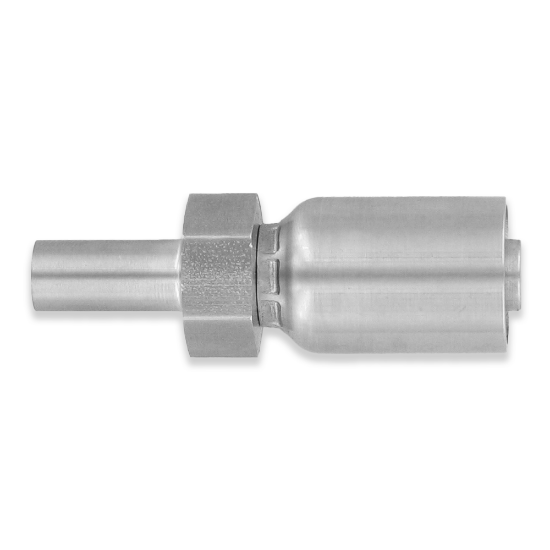

*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.

Global Fittings - 56 Series - Inch - 1TU56-8-8C

The Global 56 Series replaces the 55/58 Series. It is shorter, more compact, and is 20% lighter than comparable fittings.

Availability:	9 in stock
Partner Available:	13 in stock

SKU: 1TU56-8-8C

$133.11

Products specifications

Attribute name	Attribute value
Brand	Parker	Division	Parflex Division
Body Material	Stainless Steel	Technology	Fluid & Gas Handling
Connection 1 Type	Hose	Tube Outside Diameter	n/a
Industry	Off-road Machinery	Configuration	Hose to Port
Hex Size 1	n/a	Division	Parflex Division
Hex Size 2	n/a	Application	Industrial Hydraulics
Fitting Length	68 mm (see drawing legend A)	Connection 1 Size	12.7 mm Hose I.D.
Maximum Operating Pressure	34.5 MPa (Dependent on hose)	For Fluid Type	Air (Pneumatic Media)
Hex Size	1-1/8 inch (see drawing legend J)	Dimensional Weight	0.0567 lb
Connection Length	40 mm Cut-off allowance	Shape	Straight Universal Inch
Connection 2 Size	0.5 inch Diameter (see drawing legend R)	Connection 2 Type	Tube
Shipping Weight	0.157 lb
Materials of Construction	Stainless Steel	Hose I.D. (inch)	0.5"
Length (inch)	2.68"	Product Style	Universal Tube Stub
