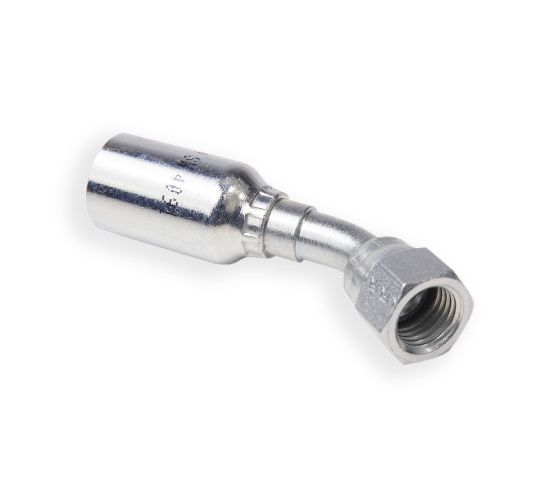

*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.

Global Fittings - 56 Series - Inch - 13756-6-6

The Global 56 Series replaces the 55/58 Series. It is shorter, more compact, and is 20% lighter than comparable fittings.

Availability:	27 in stock
Partner Available:	233 in stock

SKU: 13756-6-6

$30.47

Products specifications

Attribute name	Attribute value
Body Material	Steel	Brand	Parker
Division	Parflex Division	Industry	Transportation
Hex Size	n/a	Technology	Fluid & Gas Handling
Connection 1 Size	9.5 mm Hose I.D.	Connection 1 Type	Hose
Tube Outside Diameter	n/a	Configuration	Hose to Port
Coating	Chromium 6 Free-plated	Division	Parflex Division
Hex Size 2	n/a	Application	Utility Equipment
Maximum Operating Pressure	5000 psi (Dependent on hose)	For Fluid Type	Air (Pneumatic Media)
Connection 2 Size	9/16"-18 inch Thread	Connection 2 Type	JIC 37°
Hex Size 1	11/16 inch (see drawing legend J)	Shipping Weight	0.143 lb
Shape	Elbow 45° Short Drop	Fitting Length	2.57 inch (see drawing legend A)
Connection Length	40 mm Cut-off allowance	Dimensional Weight	0.0353 lb
Materials of Construction	Steel	Hose I.D. (inch)	0.375"
Connection 2 Size	9/16"-18	Length (inch)	2.57"
Product Style	Female JIC 37° - Swivel - 45° Elbow - Short Drop
