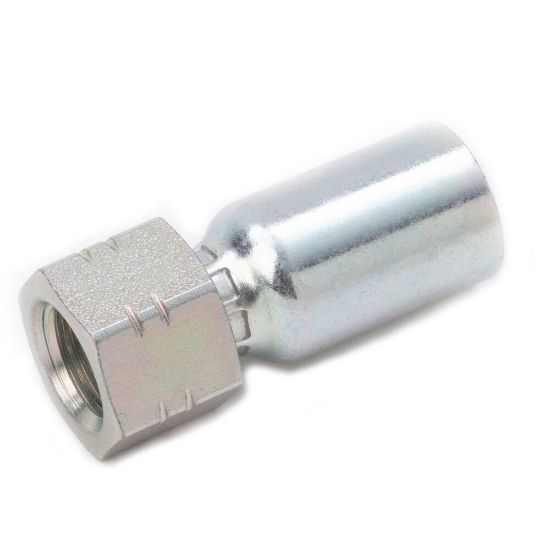

Global Fittings - 56 Series - Inch - 10256-4-4C

The Global 56 Series replaces the 55/58 Series. It is shorter, more compact, and is 20% lighter than comparable fittings.

Availability:	Backordered
Partner Available:	Backordered

SKU: 10256-4-4C

$81.47

Products specifications

Attribute name	Attribute value
Brand	Parker	Shape	Straight
Division	Parflex Division	Industry	Transportation
Body Material	Stainless Steel	For Fluid Type	Oil
Technology	Fluid & Gas Handling	Connection 1 Type	Hose
Tube Outside Diameter	n/a	Configuration	Hose to Port
Coating	Chromium 6 Free-plated	Connection 2 Size	1/4"-18 inch Thread
Hex Size 1	n/a	Division	Parflex Division
Hex Size	11/16 inch (see drawing legend H)	Hex Size 2	n/a
Application	Agriculture Equipment	Connection 1 Size	6.35 mm Hose I.D.
Maximum Operating Pressure	5000 psi (Dependent on hose)	Fitting Length	1.99 inch (see drawing legend A)
Connection 2 Type	Female	Connection Length	25 mm Cut-off allowance
Shipping Weight	0.108 lb
Materials of Construction	Stainless Steel	Product Style	Female NPTF Pipe - Rigid - Straight
Hose I.D. (inch)	0.25"	Connection 2 Size	1/4"-18
Length (inch)	1.99"
